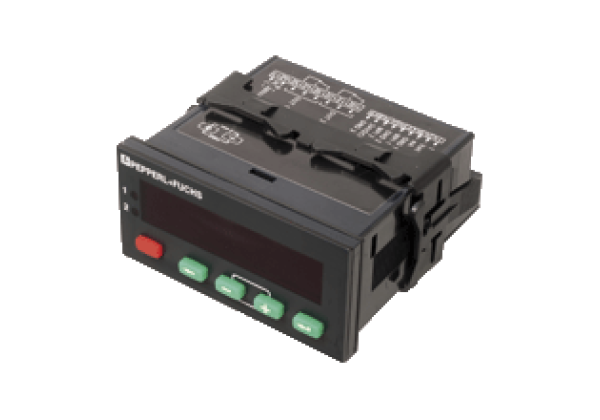

Process control and indication equipment DA6-IU-2K-V
Brand: Pepperl+Fuchs
Code: DA6-IU-2K-V
2 adjustable trip values, 2 relay outputs, Operation via keypad, Characteristic programmable via 12 interpolation points, Resetting the outputs, automatic, manual or with external signal
Datasheet excerpt: Technical data of DA6-IU-2K-V
| Product Description |
|---|
| Process control and indication equipment |
| General specifications | ||
|---|---|---|
| Pre-selection | 2-fold | |
| Data storage | > 10 years, EEPROM | |
| Programming | keypad-driven menu | |
| Indicators/operating means | ||
| Type | 14-segment LED display, red | |
| Number of digits | 6 | |
| Display value | digit height 14 mm | |
| Key interlock | with "high"-level at terminal "KEY" | |
| Display interval | -199999... 999999 with suppression of leading zeros | |
| Decimal point | freely adjustable | |
| Resolution | 15 Bit | |
| Scale factor | via characteristic curve with up to 12 value pairs | |
| Reset | manually or external | |
| Electrical specifications | ||
| Fusing | T 0.1 A | |
| Operating voltage | 90... 260 V AC | |
| Power consumption | 9 VA | |
| Input | ||
| Impedance | > 1 MΩ for voltage measurement < 50 Ω for current measurement | |
| Analog voltage input | 0... 10 V / 2... 10 V DC, -10... 10 V DC | |
| Analog current input | 0... 20 mA / 4... 20 mA | |
| Output | ||
| Relay | changeover contact | |
| Switching voltage | max. 250 V AC / 125 V DC min. 5 V AC / 5 V DC | |
| Switching current | max. 5 A AC / 5 A DC min. 10 mA DC | |
| Switching power | max. 1250 VA / 150 W | |
| Sensor supply | 24 V DC ± 15 % , 30 mA 15 V DC ± 1 %, 25 mA | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 61000-6-2:2006 (With shielded signal and control lines) DIN EN 55011:2009, Class B | |
| Standard conformity | ||
| Galvanic isolation | EN 61010-1:2010 | |
| Degree of protection | EN 60529:1991 + A1:2000 | |
| Shock and impact resistance | EN 60068-2-27:2009 EN 60068-2-29:1995 | |
| Vibration resistance | EN 60068-2-6:2008 | |
| Ambient conditions | ||
| Ambient temperature | -10... 50 °C (14... 122 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Relative humidity | ≤ 80 % (noncondensing) | |
| Mechanical specifications | ||
| Degree of protection | IP65 (front) | |
| Connection | 8-pin and 9-pin connectors with screw terminals | |
| Mass | 180 g | |
| Dimensions | 96 mm x 48 mm x 102 mm | |
| Mounting | mounting frame with latch fastener | |
