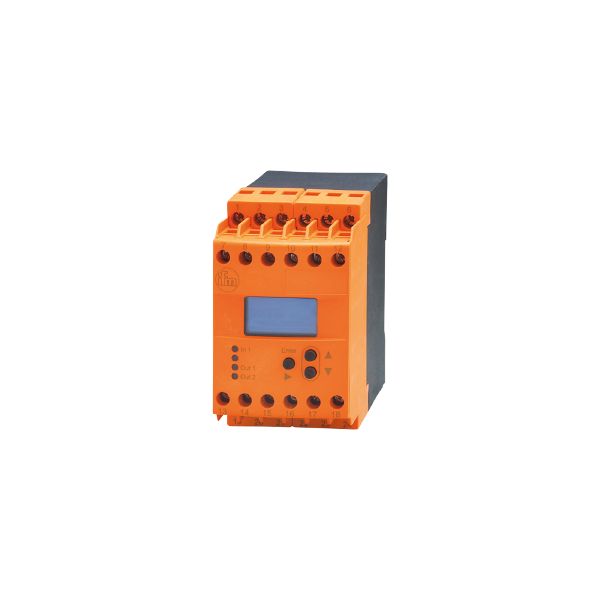

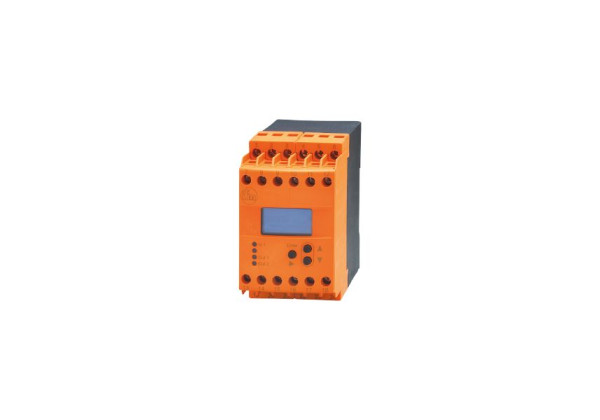

DD2505 - ecomat200-MONITOR/FR-2 /110-240VAC/DC

Code: DD2505

For detecting frequency, speed and rotational speed
Monitoring of two input channels with one separate output relay each
Easy setting of the switch points via programming buttons
Clearly readable, luminous OLED display for programming and actual value indication
High input frequency of up to 60,000 pulses / minute

Product characteristics

Housing	housing for DIN rail mounting
Dimensions [mm]	78 x 45 x 124.7

Application

Application	pulse evaluation system with microprocessor for frequency; rotational speed; speed; pulses and machine cycles

Electrical data

Nominal voltage AC [V]	110...240
Nominal voltage DC [V]	27
Nominal voltage tolerance [%]	< 10
Nominal voltage tolerance 2 [%]	20...10
Nominal frequency AC [Hz]	50...60
Power consumption [W]	3
Auxiliary energy for sensors DC [V]	19.6...27.7; (SELV, ≤ 150 mA)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of relay outputs: 2

Outputs

Number of digital outputs	2
Number of relay outputs	2
Contact rating	6 A (250 V AC); B300, R300

Measuring/setting range

Setting range Hz [Hz]	0.1...1000
Setting range [Imp/min]	1...60000

Operating conditions

Ambient temperature [°C]	-40...60
Storage temperature [°C]	-40...85
Max. relative air humidity [%]	80; (40 °C: 50 %)
Protection	IP 50
Protection rating terminals	IP 20

Tests / approvals

EMC

EN 61010	2011
EMV 89/336/EWG
EN 61000-6-2	2005
EN 61000-6-4	2007

Mechanical data

Weight [g]	381
Housing	housing for DIN rail mounting
Dimensions [mm]	78 x 45 x 124.7
Materials	plastics

Displays / operating elements

Display

	OLED display, 128 x 64 pixels luminous
switching status	LED, green

Remarks

The unit complies with overvoltage category II; pollution degree 2

Electrical connection

	dual-chamber terminals: 2 x...2.5 mm²; AWG 14
