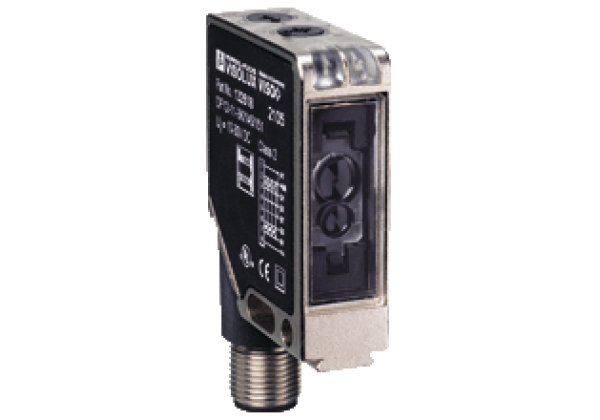

Print mark color sensor DF12-11-3K/145/151
Brand: Pepperl+Fuchs
Code: DF12-11-3K/145/151
Print mark color sensor, 11 mm detection range, RGB light, external Teach-In, 3 push-pull outputs, M12 plug, Diffuse mode sensor for recording colored print marks on backgrounds with different colors, Color detection by means of the active three-range method, TEACH-IN procedure for automatic threshold value setting, 3 independent channels, 3 tolerance steps per channel
Datasheet excerpt: Technical data of DF12-11-3K/145/151
| Product Description |
|---|
| Print mark color sensor, 11 mm detection range, RGB light, external Teach-In, 3 push-pull outputs, M12 plug |
| General specifications | ||
|---|---|---|
| Sensor range | 11 mm ± 2 mm | |
| Light source | 3 LEDs (R,G,B) | |
| Light type | Visible green/red/blue, modulated light | |
| Light spot representation | 1 mm x 3 mm | |
| Angle deviation | max. ± 3° | |
| Functional safety related parameters | ||
| MTTFd | 730 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 60 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | 2 LEDs yellow, light up in case of detection | |
| Teach-In indicator | Teach-In channel: LED green/yellow equiphase flashing; 2.5 Hz. Teach-In tolerance: LED green/yellow non equiphase flashing; 2.5 Hz. | |
| Control elements | 2 Teach-In rotary switch for Teach-In channel and Teach-In tolerance. | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 40 mA | |
| Protection class | II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| Input | ||
| Function input | Ext. Teach-In input (ET) Ext. blanking-input (AT) | |
| Output | ||
| Signal output | 3 push-pull (4 in 1) outputs, short-circuit proof, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Switching frequency | 500 Hz | |
| Response time | 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Approvals | CE, cULus | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -20... 75 °C (-4... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 41.5 mm | |
| Housing height | 49 mm | |
| Housing depth | 15 mm | |
| Degree of protection | IP67 | |
| Connection | 8-pin, M12 metal connector, 90° convertible | |
| Material | ||
| Housing | Frame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC | |
| Optical face | Plastic pane | |
| Mass | 60 g | |
| Note | (use V19 type connection cable ) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270907 |
| ECLASS 12.0 | 27270907 |
| ECLASS 11.0 | 27270907 |
| ECLASS 10.0.1 | 27270907 |
| ECLASS 9.0 | 27270907 |
| ECLASS 8.0 | 27270907 |
| ECLASS 5.1 | 27270907 |
| ETIM 9.0 | EC001817 |
| ETIM 8.0 | EC001817 |
| ETIM 7.0 | EC001817 |
| ETIM 6.0 | EC001817 |
| ETIM 5.0 | EC001817 |
| UNSPSC 12.1 | 39121528 |
