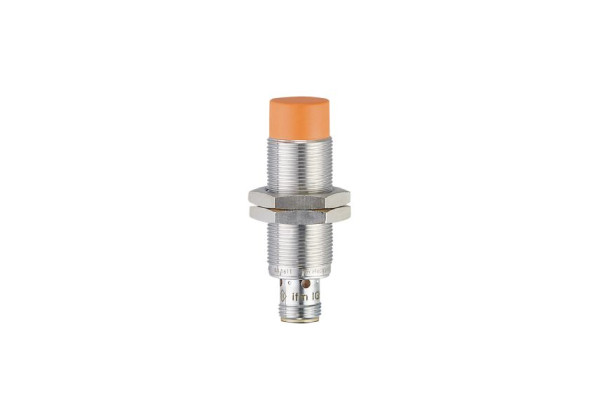

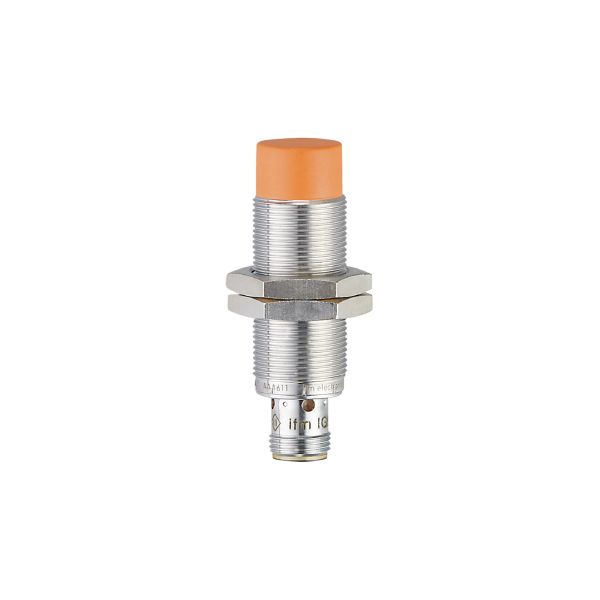

DI5030 Compact evaluation unit for speed monitoring DGK3012-WRKG/IO/US

Code: DI5030

Product characteristics

Electrical design	PNP/NPN
Output function	normally open / normally closed; (parameterisable)
Sensing range [mm]	12
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 60

Application

Application	simple evaluation of rotating and linear movement with regard to underspeed; blocking

Electrical data

Nominal voltage DC [V]	10...30
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	12
Sensing range adjustable	no
Operating distance [mm]	0...9.72

Measuring/setting range

Setting range [Imp/min]	5...24000

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	10

Response times

Start-up delay [s]	0...30; (In steps of: 100 ms; Default: 15 s)
Max. damping frequency [Imp/min]	30000

Interfaces

Communication interface	IO-Link

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-25...85
Protection	IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B
EN 60947-5-2

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Vibration resistance

DIN EN 60947-5-2	20 g (10...3000 Hz)
	50 sweep cycles, 1 octave per minute, in 3 axes

MTTF [years]

664

UL approval

UL Approval no.

A008

Mechanical data

Weight [g]	45.9
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 60
Thread designation	M18 x 1
Materials	housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Tightening torque [Nm]	25

Displays / operating elements

Display

SIO mode
output stage supplied with current	4 x LED, yellow
IO-Link mode
target in measuring range	4 x LED, yellow
target outside measuring range	4 x LED, yellow flashing

Accessories

Items supplied

lock nuts: 2

Electrical connection

Connection	Connector: 1 x M12; coding: A
