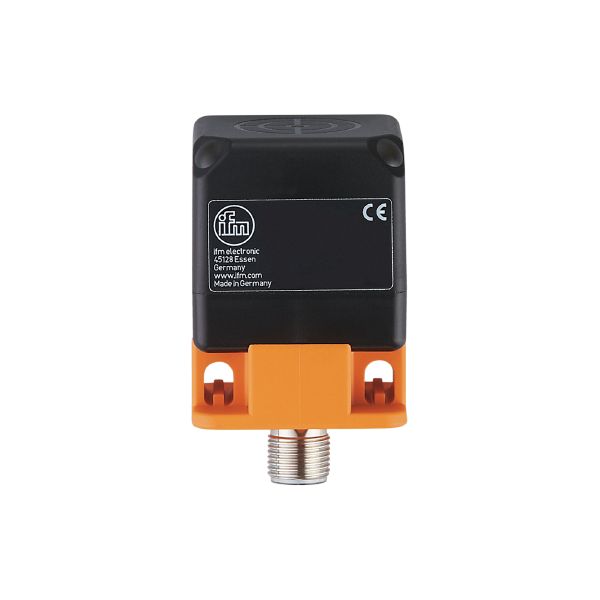

DI5034 Compact evaluation unit for speed monitoring DMC3024-WRKG/IO/US
Brand: IFM Electronic
Code: DI5034
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Sensing range [mm] | 24 |
| Communication interface | IO-Link |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 54 |
Application
| Application | simple evaluation of rotating and linear movement with regard to underspeed; blocking |
|---|
Electrical data
| Nominal voltage DC [V] | 10...30 |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 24 |
|---|---|
| Sensing range adjustable | no |
| Operating distance [mm] | 0...19.44 |
Measuring/setting range
| Setting range [Imp/min] | 5...9600 |
|---|
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 10 |
Response times
| Start-up delay [s] | 0...30; (In steps of: 100 ms; Default: 15 s) |
|---|---|
| Max. damping frequency [Imp/min] | 12000 |
Interfaces
| Communication interface | IO-Link |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -25...85 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 636 | ||||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 182 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 40 x 54 |
| Materials | PA |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Moulded body: brass, white bronze coated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DI5034-00 — 13.04.2023 —
