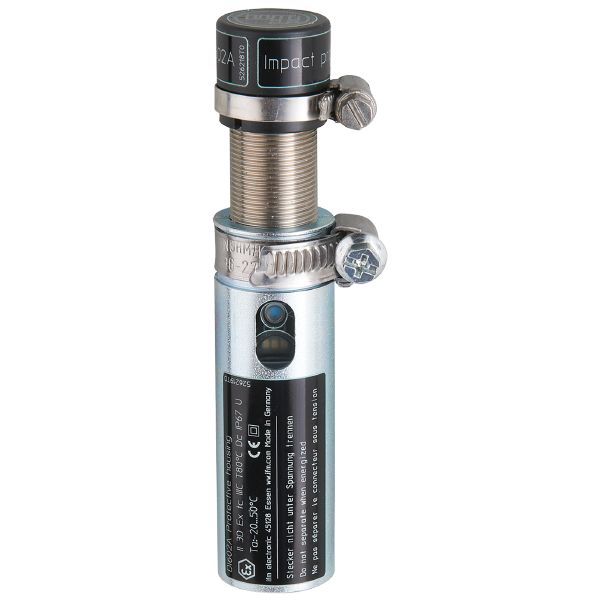

DI602A - ecomat200-DGA4012-WPKG/US/3D
Brand: IFM Electronic
Code: DI602A
- For applications in hazardous areas
- Reliable non-contact monitoring of the rotational speed with regard to underspeed
- 2 in 1: speed sensor and evaluation in one compact housing
- Easy setting of the switch point via teach button
- For direct connection to a PLC
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Sensing range [mm] | 8 |
| Dimensions [mm] | M18 x 1 / L = 68 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | evaluation of rotating and linear movements with regard to underspeed; blocking |
Electrical data
| Nominal voltage DC [V] | 10...36 |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (when used outside the hazardous area: 250; Pulse output: 15) |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 8 |
|---|---|
| Sensing range adjustable | no |
| Operating distance [mm] | 0...6 |
Measuring/setting range
| Setting range [Imp/min] | 3...6000 |
|---|
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 10 |
Response times
| Start-up delay [s] | 0...15 |
|---|---|
| Max. damping frequency [Imp/min] | 18000 |
Software / programming
| Adjustment of the switch point | Teach function |
|---|
Operating conditions
| Ambient temperature [°C] | -20...50 | |
|---|---|---|
| Note on ambient temperature |
| |
| Storage temperature [°C] | -25...60 | |
| Protection | IP 67 |
Tests / approvals
| ATEX marking | | ||
|---|---|---|---|
| Note on ATEX marking |
| ||
| EMC |
| ||
| MTTF [years] | 1051 |
Mechanical data
| Weight [g] | 177 |
|---|---|
| Mounting | non-flush mountable |
| Dimensions [mm] | M18 x 1 / L = 68 |
| Thread designation | M18 x 1 |
| Materials | stainless steel (1.4571/316Ti ); PBT; TPE-U |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
bemerkungen
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — DI602A — 31.08.2012 —
