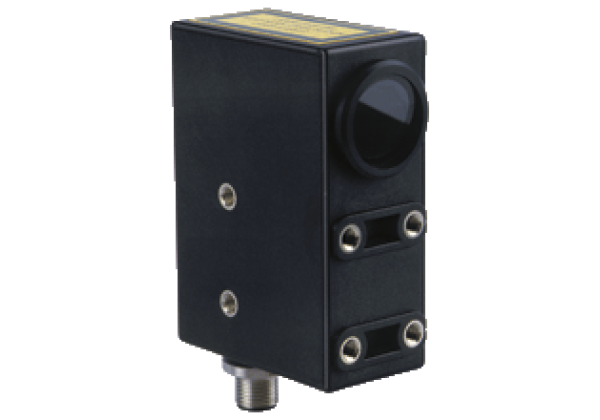

Print mark contrast sensor DK10-LAS/49
Brand: Pepperl+Fuchs
Code: DK10-LAS/49
Print mark contrast sensor, 300 mm detection range, red laser light, laser class 2, light/dark on, sensitivity adjuster, NPN output, PNP output, M12 plug, Laser print mark contrast sensor for recording very small print marks, Large focus depth range from 3 mm ... 300 mm, Laser class 2, eyesafe, Adjustable sensitivity, 30 µs response time, suitable for extremely rapid scanning processes
Datasheet excerpt: Technical data of DK10-LAS/49
| Product Description |
|---|
| Print mark contrast sensor, 300 mm detection range, red laser light, laser class 2, light/dark on, sensitivity adjuster, NPN output, PNP output, M12 plug |
| General specifications | ||
|---|---|---|
| Sensor range | 300 mm | |
| Detection range | 3... 300 mm | |
| Light source | laser diode | |
| Light type | modulated visible red light | |
| Laser nominal ratings | ||
| Note | LASER LIGHT , DO NOT STARE INTO BEAM | |
| Laser class | 2 | |
| Wave length | 650 nm | |
| Beam divergence | < 1.5 mrad | |
| Pulse length | 1.5 µs | |
| Repetition rate | 108.7 kHz | |
| max. pulse energy | 2.1 nJ | |
| Light spot representation | approx. 0.8 mm at a distance of 300 mm | |
| Ambient light limit | ||
| Continuous light | 40000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 550 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 60 % | |
| Indicators/operating means | ||
| Function indicator | LED yellow: lights up if receiver is lit (light on), lights up if receiver is not lit (dark on) | |
| Control elements | Light-on/dark-on changeover switch, sensitivity adjuster | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 55 mA | |
| Input | ||
| Test input | emitter deactivation with +Ub | |
| Output | ||
| Switching type | light/dark on switchable | |
| Signal output | 1 PNP and 1 NPN short-circuit protected, open collector, synchronized-switching | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 200 mA | |
| Switching frequency | 16.5 kHz | |
| Response time | 30 µs | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Laser safety | IEC 60825-1:2007 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Shock and impact resistance | IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions | |
| Vibration resistance | IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| UL approval | cULus Listed , Class 2 power source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -10... 50 °C (14... 122 °F) | |
| Storage temperature | -20... 75 °C (-4... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 33 mm | |
| Housing height | 85.6 mm | |
| Housing depth | 60.8 mm | |
| Degree of protection | IP67 | |
| Connection | 5-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC (glass-fiber-reinforced Makrolon) | |
| Optical face | glass | |
| Mass | 200 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 10.0.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 5.1 | 27270906 |
| ETIM 9.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 5.0 | EC001820 |
| UNSPSC 12.1 | 39121528 |
