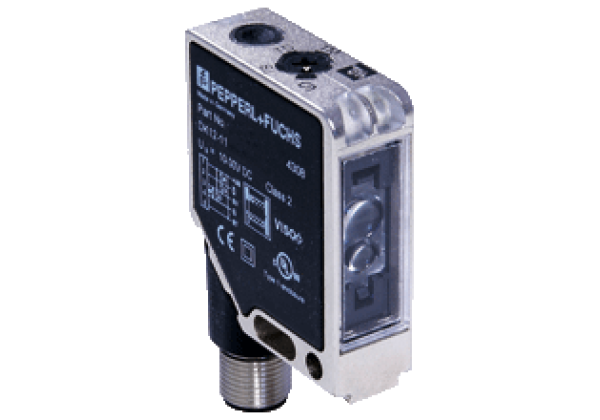

Print mark contrast sensor DK12-11/124/136
Brand: Pepperl+Fuchs
Code: DK12-11/124/136
Print mark contrast sensor, 11 mm detection range, RGB light parallel with the longitudinal direction of the housing, light/dark ON, external Teach-In, 2 push-pull outputs, M12 plug, Diffuse mode sensor for recording any print mark, TEACH-IN, static and dynamic, 50 µs response time, suitable for extremely rapid scanning processes, 3 emitter colors: green, red and blue
Datasheet excerpt: Technical data of DK12-11/124/136
| Product Description |
|---|
| Print mark contrast sensor, 11 mm detection range, RGB light parallel with the longitudinal direction of the housing, light/dark ON, external Teach-In, 2 push-pull outputs, M12 plug |
| General specifications | ||
|---|---|---|
| Sensor range | 11 mm ± 2 mm | |
| Light source | 3 LEDs (R,G,B) | |
| Light type | Visible green/red/blue, modulated light | |
| Light spot representation | 1 mm x 3 mm , light spot parallel to housing | |
| Angle deviation | max. ± 3° | |
| Teach-In | static and dynamic Teach-In | |
| Functional safety related parameters | ||
| MTTFd | 750 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 60 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | 2 LEDs yellow, light up in case of detection | |
| Teach-In indicator | Teach-In mark: LED green/yellow equiphase flashing; 2,5 Hz. Teach-In background: LED green/yellow non equiphase flashing; 2,5 Hz. Teach-In dynamic: LED green/yellow equiphase flashing; 1.0 Hz. Teach Error:LED green/yellow non equiphase flashing; 8.0 Hz. | |
| Control elements | Teach-In rotary switch for Switching operation, Teach-In mark, Teach-In background and dynamic Teach-In | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 80 mA | |
| Input | ||
| Function input | Ext. Teach-In input (ET) | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Switching frequency | 10 kHz | |
| Response time | 50 µs | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| Protection class | II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | cULus Listed , Class 2 power source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 41.5 mm | |
| Housing height | 49 mm | |
| Housing depth | 15 mm | |
| Degree of protection | IP67 | |
| Connection | Metal connector, M12, 5-pin, 90° rotatable | |
| Material | ||
| Housing | Frame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC | |
| Optical face | Plastic pane | |
| Mass | 60 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 10.0.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 5.1 | 27270906 |
| ETIM 9.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 5.0 | EC001820 |
| UNSPSC 12.1 | 39121528 |
