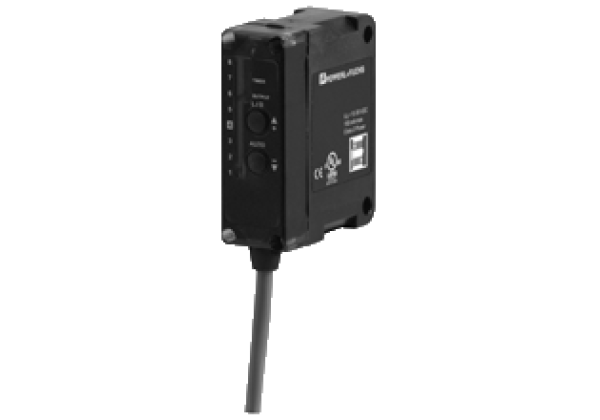

Print mark luminescence scanner DK50-UV-609/115b/147
Brand: Pepperl+Fuchs
Code: DK50-UV-609/115b/147
Print mark luminescence scanner, detection range: 609 mm, UV light, light/dark on, Teach-In, timer function, NPN output, PNP output, cable with M12 plug, Detect fluorescent chalk marks, clear glue, tamper-proof seals and other marks that regular contrast sensors cannot, Detect marks on irregular backgrounds, Sense invisible or nearly invisible marks, Compact, space-saving construction, Integral timer available
Datasheet excerpt: Technical data of DK50-UV-609/115b/147
| Product Description |
|---|
| Print mark luminescence scanner, detection range: 609 mm, UV light, light/dark on, Teach-In, timer function, NPN output, PNP output, cable with M12 plug |
| General specifications | ||
|---|---|---|
| Detection range | 50.8... 609.6 mm | |
| Light source | LED | |
| Light type | modulated UV light | |
| Light spot representation | 25.4 mm at 203 mm sensor range | |
| Indicators/operating means | ||
| Function indicator | LED red, lights up with receiver lit | |
| Control elements | Push buttons for automatic or incremental Teach-In, L.O./D.O. mode, and/or off-delay timer | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Output | ||
| Switching type | light on / dark on | |
| Signal output | 1 PNP and 1 NPN short-circuit protected, reverse polarity protected | |
| Approvals and certificates | ||
| Approvals | CE, cULus | |
| Mechanical specifications | ||
| Housing width | 22.9 mm | |
| Housing height | 64.9 mm | |
| Housing depth | 56 mm | |
| Degree of protection | IP67 | |
| Connection | 152.4 mm fixed cable with 5-pin, M12 x 1 connector | |
| Material | ||
| Housing | Polycarbonate | |
| Optical face | Acrylic | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270908 |
| ECLASS 12.0 | 27270908 |
| ECLASS 11.0 | 27270908 |
| ECLASS 10.0.1 | 27270908 |
| ECLASS 9.0 | 27270908 |
| ECLASS 8.0 | 27270908 |
| ECLASS 5.1 | 27270908 |
| ETIM 9.0 | EC001822 |
| ETIM 8.0 | EC001822 |
| ETIM 7.0 | EC001822 |
| ETIM 6.0 | EC001822 |
| ETIM 5.0 | EC001822 |
| UNSPSC 12.1 | 39121528 |
