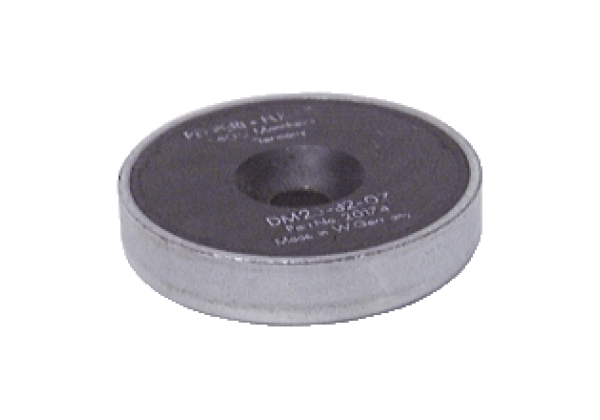

Magnet DM 25-32-07
Brand: Pepperl+Fuchs
Code: DM 25-32-07
Permanent magnet for magnetic field sensors
Datasheet excerpt: Technical data of DM 25-32-07
| Product Description |
|---|
| Permanent magnet for magnetic field sensors |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Material | BaFe with steel jacket | |
| Dimensions | Height: 7 mm Diameter: 32 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274002 |
| ECLASS 12.0 | 27274002 |
| ECLASS 11.0 | 27270103 |
| ECLASS 10.0.1 | 27270103 |
| ECLASS 9.0 | 27270103 |
| ECLASS 8.0 | 27270191 |
| ECLASS 5.1 | 27270191 |
| ETIM 9.0 | EC001487 |
| ETIM 8.0 | EC001487 |
| ETIM 7.0 | EC001487 |
| ETIM 6.0 | EC001487 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251510 |
