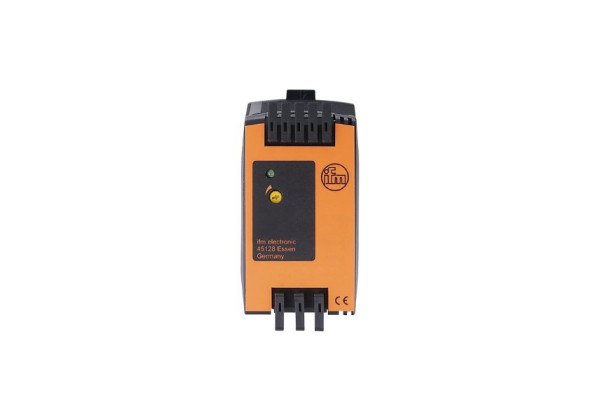

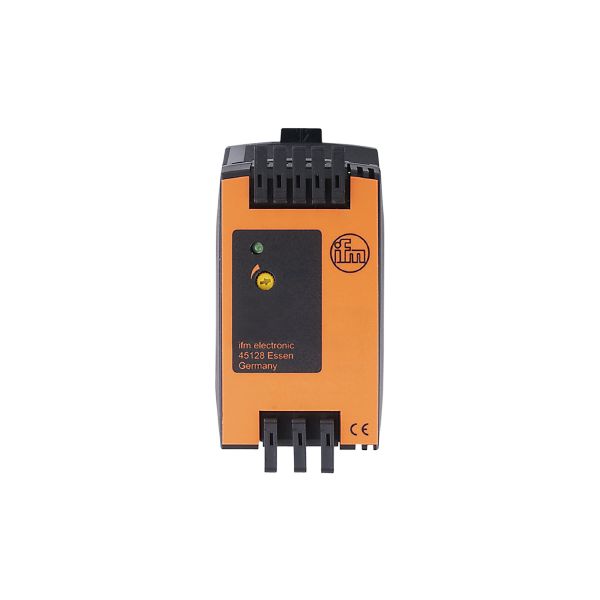

DN1020 Switched-mode power supply 24 V DC POWER SUPPLY/24VDC/1,3A

Code: DN1020

For the regulated power supply for controllers, sensors, actuators, and industrial electronics
Low power loss thanks to high efficiency
High mains buffering time
High power reserves
Low heating of the control cabinet

Electrical data

Nominal voltage AC [V]	< 230
Nominal frequency AC [Hz]	50...60
Input voltage range AC [V]	100...240
Output voltage DC [V]	24...28
Protection class	I; (IEC 61140)
Overvoltage protection	yes; (< 40)
Output voltage [V]	adjustable
Output voltage tolerance [%]	2
Max. output current at min. output voltage [A]	1.3
Number of output circuits	1
Max. residual ripple [mV]	50
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]	87.5
Derating [W/K]	1 (60...70 °C)
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]	190

Outputs

Short-circuit protection	yes
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-10...70
Protection	IP 20

Tests / approvals

EMC

EN 61000-6-2
EN 61000-6-3

MTTF [years]

411

Mechanical data

Weight [g]	310.5
Type of mounting	rail; (TH35 (EN 60715))
Dimensions [mm]	83 x 45 x 96
Materials	PC

Displays / operating elements

Display

function

LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	spring clamp terminals:...2.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DN1020-00 — 10.08.2012 —
