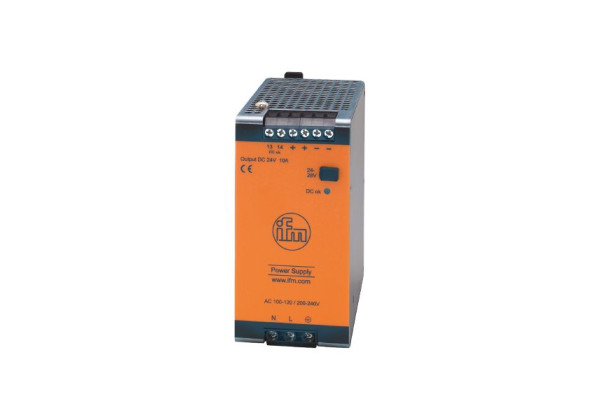

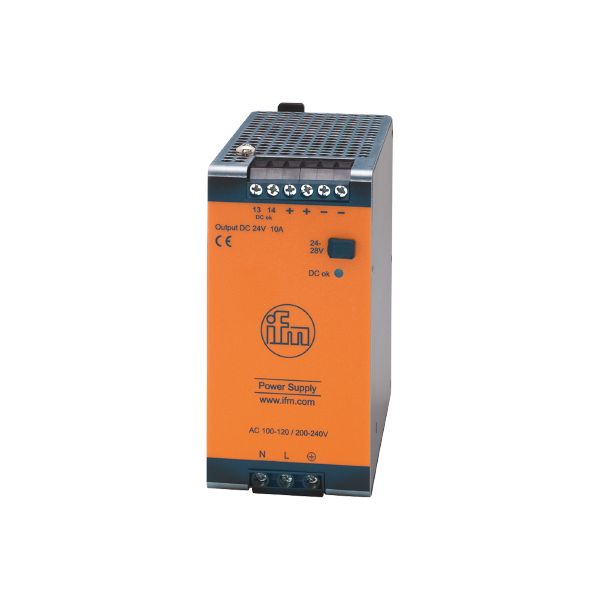

DN4013 - ecomat200-PSU-1AC/24VDC-10A

Brand: IFM Electronic

Code: DN4013

For the regulated power supply for controllers, sensors, actuators, and industrial electronics
Low power loss thanks to high efficiency
High mains buffering time
Particularly space-saving design
High power reserves

Electrical data

Frequency AC [Hz]

47...64

Operating voltage tolerance [%]

Operating voltage tolerance 2 [%]

Operating voltage [V]

automatic range selection

Nominal voltage AC [V]

< 230

Nominal frequency AC [Hz]

50...60

Input voltage range AC [V]

100...120 / 200...240

Output voltage DC [V]

24...28

Protection class

I; (IEC 61140)

Overvoltage protection

yes; (< 39 DC)

Output voltage [V]

adjustable; output voltage to SELV, PELV

Max. output current at min. output voltage [A]

Max. output current at max. output voltage [A]

8.6

Max. output current peak at min. output voltage [A]

Max. output current peak at max. output voltage [A]

10.3

Output power (permanent) [W]

240

Output power (peak) [W]

288

Note on output power (peak) [W]

≤ 45 °C permitted continuously; > 45 °C < 1 minute every 10 minutes

Power factor (nominal voltage 120 V AC / 60 Hz)

0.59

Power factor (nominal voltage 230 V AC / 50 Hz)

0.51

Power reserve [%]

Number of output circuits

Max. residual ripple [mV]

Switch-on peak current (nominal voltage 120 V AC / 60 Hz) [A]

Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A]

Inrush current limitation

yes

Efficiency (nominal voltage 120 V AC / 60 Hz) [%]

Efficiency (nominal voltage 230 V AC / 50 Hz) [%]

91.6

External input protection

≤ B-10 A / ≤ C-6 A

Derating [W/K]

6 (60...70 °C)

Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms]

Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]

Input current (nominal voltage 120 V AC / 60 Hz) [A]

3.73

Input current (nominal voltage 230 V AC / 50 Hz) [A]

2.23

Power loss (nominal voltage 120 V AC / 60 Hz) [W]

23.7

Power loss (nominal voltage 230 V AC / 50 Hz) [W]

Back feeding protection [V]

Outputs

Short-circuit proof	yes
Overload protection	yes
Overload performance	output current constant
Type DC-OK signal	relay output
Reliability of the DC OK signal	60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A)

Operating conditions

Ambient temperature [°C]

-25...70

Note on ambient temperature

observe the free space for convection (see operating instructions)

Storage temperature [°C]

-40...85

Max. relative air humidity [%]

95; (IEC 60068-2-30)

Protection

IP 20; (EN 60529)

Pollution degree

2; (IEC 62103: conductive soiling not permitted)

Overheat protection

yes

Tests / approvals

EMC

EN 61000-6-1
EN 61000-6-2
EN 61000-6-4

Vibration resistance

IEC 60068-2-6

±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz

Shock resistance

IEC 60068-2-27

30 g 6 ms / 20 g 11 ms

Mechanical data

Weight [g]	875.5
Type of mounting	rail; (TH35 (EN 60715))
Dimensions [mm]	124 x 62 x 122.5
Materials	steel sheet

Displays / operating elements

Display

DC ok

1 x LED

Remarks

Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage

Pack quantity

1 pcs.

Electrical connection

Connection	screw terminals:

Diagrams and graphs

block diagram

output characteristics

characteristic curve for degree of efficiency / power loss

characteristic line for derating

characteristic line for mains buffering time

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DN4013-00 — 10.01.2014 —
