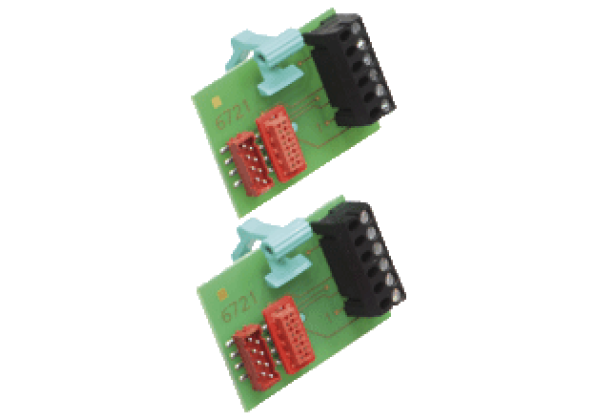

Accessory DGE DoorScan Adapter
Brand: Pepperl+Fuchs
Code: DoorScan Adapter
Cable adapter for configurable DoorScan presence sensor, Adapter for connecting cables (e.g., to glass doors, existing cables), Tool-free module mounting using snap-in mechanism
Datasheet excerpt: Technical data of DoorScan Adapter
| Product Description |
|---|
| Adapter module for installation in the DoorScan® and TopScan sensor profile, multifunction interface module |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP54 (iwhen mounted) | |
| Connection | plug strip 6-pin , socket 8-pin , solder pins 8-pin | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270992 |
| ECLASS 10.0.1 | 27270992 |
| ECLASS 9.0 | 27270992 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
