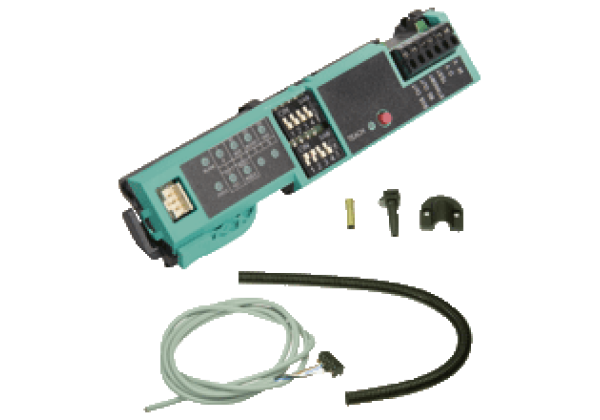

Sensor module, interface DoorScan Interface Set
Brand: Pepperl+Fuchs
Code: DoorScan Interface Set
Sensor module for configurable DoorScan® presence sensor, Multi-function interface with full operation, Complete system supply for the entire system for one door, Can also be used to supply the emitter and receiver modules with power, Single button commissioning with automatic Teach-in function, Function: Open and secure, Sensor principle: Active infrared scanner
Datasheet excerpt: Technical data of DoorScan Interface Set
| Product Description |
|---|
| Replacement/extension sensor module for installation in the DoorScan® and TopScan sensor profile, multifunction interface module with door transition cable |
| General specifications | ||
|---|---|---|
| Operating mode | Background evaluation | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| Performance level (PL) | PL d | |
| Category | Cat. 2 | |
| MTTFd | 2716 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 90 % | |
| Indicators/operating means | ||
| Function indicator | Interface: Red LED: detection, excess gain, fault code Yellow LED: teach status Green LED: blank status Green LED: DIP switch status | |
| Electrical specifications | ||
| Operating voltage | 24 V DC +/- 20 % | |
| No-load supply current | 30 mA | |
| Input | ||
| Test input | High active at U = 15 V DC to 30 V DC Low active at U = < 2 V DC | |
| Control input | Standby active at U = 11 V DC at 30 V DC | |
| Output | ||
| Switching type | Hinge edge light on Leading edge light on/dark on, switchable | |
| Signal output | NPN , short-circuit protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Response time | ≤ 52 ms ≤ 200 ms in boost operating mode | |
| Conformity | ||
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 | |
| Product standard | EN 12978 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Mechanical specifications | ||
| Mounting height | max. 3500 mm | |
| Degree of protection | IP54 (iwhen mounted) | |
| Connection | plug strip , 6-pin Cable: screw terminal , 6-pin | |
| Material | Cable sheathing: polyamide PA 6, black , Wall bracket: ABS | |
| Cable | PUR, gray, 6-wire | |
| Sheath diameter | approx. 4.8 mm | |
| Bending radius | min. 48 mm | |
| Length | 5000 mm | |
| Mass | approx. 140 g | |
| General information | ||
| Scope of delivery | Sensor module, interface , Wall bracket , Screw kit , cord grip , cable , Cable sheathing , Hollow rivet | |
| Suitable series | ||
| Series | DoorScan® | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 10.0.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
