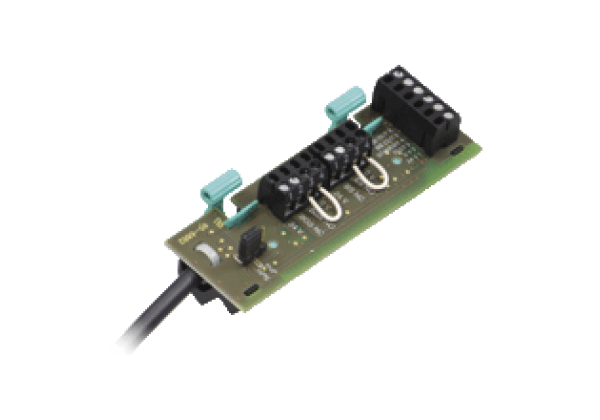

Accessory DGE DoorScan Relay Module
Brand: Pepperl+Fuchs
Code: DoorScan Relay Module
Sensor module for configurable DoorScan® presence sensor, Conversion of semiconductor signals to relay output signals, Tool-free module mounting using snap-in mechanism
Datasheet excerpt: Technical data of DoorScan Relay Module
| Product Description |
|---|
| Replacement/extension sensor module for installation in the DoorScan® and TopScan sensor profile, multifunction interface module |
| Functional safety related parameters | ||
|---|---|---|
| Safety Integrity Level (SIL) | SIL 2 | |
| Performance level (PL) | PL d | |
| MTTFd | 72 a | |
| B10d | 2 E+8 | |
| B10 | 3 E+6 | |
| Indicators/operating means | ||
| Control elements | Jumper for interface PNP / NPN | |
| Electrical specifications | ||
| Operating voltage | 24 V DC ± 20 % | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP54 (iwhen mounted) | |
| Connection | plug strip , 6-pin Interface , 4-pin Relay supply | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270992 |
| ECLASS 10.0.1 | 27270992 |
| ECLASS 9.0 | 27270992 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
