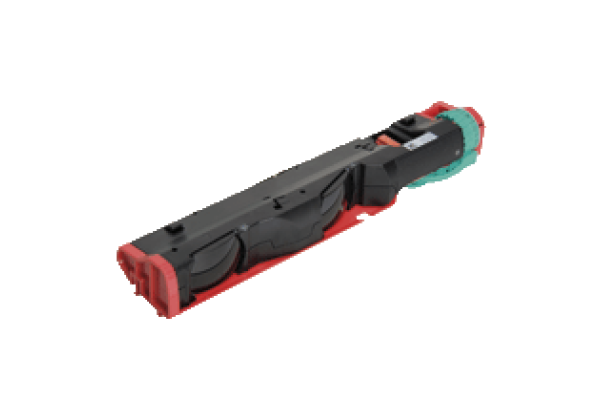

Sensor module, emitter DoorScan-T
Brand: Pepperl+Fuchs
Code: DoorScan-T
Sensor module for configurable DoorScan® presence sensor, Emitter module (E), Adjustment options for detection field and angle of inclination, Tool-free module mounting using snap-in mechanism, Function: Open and secure, Sensor principle: Active infrared scanner
Datasheet excerpt: Technical data of DoorScan-T
| Product Description |
|---|
| Replacement/extension sensor module for installation in the DoorScan® and TopScan sensor profile, emitter module |
| General specifications | ||
|---|---|---|
| Detection range min. | 0... 1500 mm | |
| Detection range max. | 0... 3500 mm | |
| Light source | IRED | |
| Light type | modulated infrared light | |
| Black/White difference (6 %/90 %) | < 2 % at 2000 mm sensor range | |
| Operating mode | Background evaluation | |
| Diameter of the light spot | 8 cm at 2000 mm sensor range | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| Performance level (PL) | PL d | |
| Category | Cat. 2 | |
| MTTFd | 864 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 90 % | |
| Electrical specifications | ||
| No-load supply current | 30 mA | |
| Conformity | ||
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 | |
| Product standard | EN 12978 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Mechanical specifications | ||
| Mounting height | max. 3500 mm | |
| Degree of protection | IP54 (iwhen mounted) | |
| Material | ||
| Optical face | PC (Polycarbonate) | |
| Mass | approx. 55 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 10.0.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
