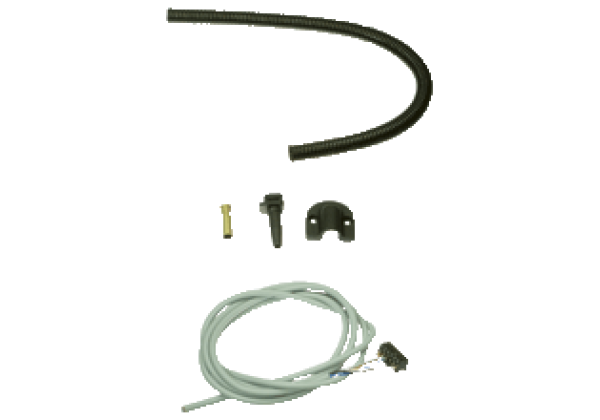

DoorScan® door transition cable DoorScan Transfer Loop
Brand: Pepperl+Fuchs
Code: DoorScan Transfer Loop
Door transition cable to connect the sensor to the controller, Connection to interface module
Datasheet excerpt: Technical data of DoorScan Transfer Loop
| Product Description |
|---|
| Door transition cable to door controller for DoorScan® sensor, including cable sheathing and strain relief |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | max. 300 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 80 °C (-13... 176 °F) | |
| Mechanical specifications | ||
| Connection | screw terminal , 6-pin | |
| Material | Cable sheathing: polyamide PA 6, black , Wall bracket: ABS | |
| Cable | PUR, gray, 6-wire | |
| Length | 5000 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270992 |
| ECLASS 10.0.1 | 27270992 |
| ECLASS 9.0 | 27270992 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
