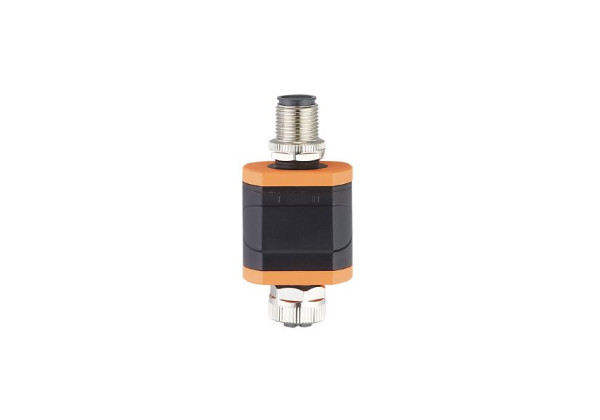

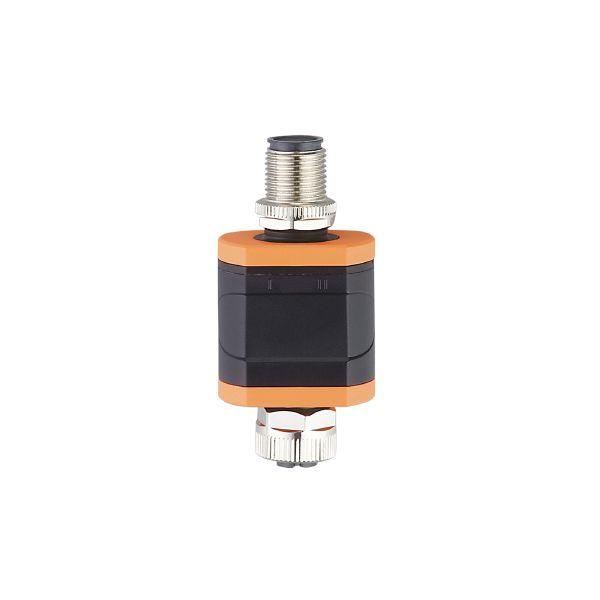

DP1222 converter 0...10 V - IO-Link Converter 2x0-10V/IO-Link
Brand: IFM Electronic
Code: DP1222
Product characteristics
| Number of inputs and outputs | Number of analogue inputs: 2 |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 380 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 2 |
|---|
Inputs
| Max. total current rating of inputs [mA] | 200 |
|---|---|
| Number of analogue inputs | 2 |
| Analogue input (voltage) [V] | 0...10 |
Interfaces
| Communication interface | IO-Link | ||||||
|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||
| IO-Link revision | 1.1 | ||||||
| SDCI standard | IEC 61131-9 | ||||||
| Profiles | Smart Sensor 0x4000: Identification and Diagnosis 0x8001: Switching Signal Channel 0x8006: Adjustable Switching Signal Channel | ||||||
| SIO mode | no | ||||||
| Required master port type | A/B | ||||||
| Process data analogue | 2 | ||||||
| Supported DeviceIDs |
|
| Min. process cycle time [ms] | 4.3 |
|---|
| Min. process cycle time [ms] | 4.6 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...70 | |||
|---|---|---|---|---|
| Note on ambient temperature |
| |||
| Storage temperature [°C] | -25...70 | |||
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) | |||
| Max. height above sea level [m] | 4000 | |||
| Protection | IP 67 | |||
| Pollution degree | 2 |
Tests / approvals
| MTTF [years] | 504 |
|---|
Mechanical data
| Weight [g] | 92 |
|---|---|
| Materials | housing: PA |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP1222-01 — 26.08.2022 —
