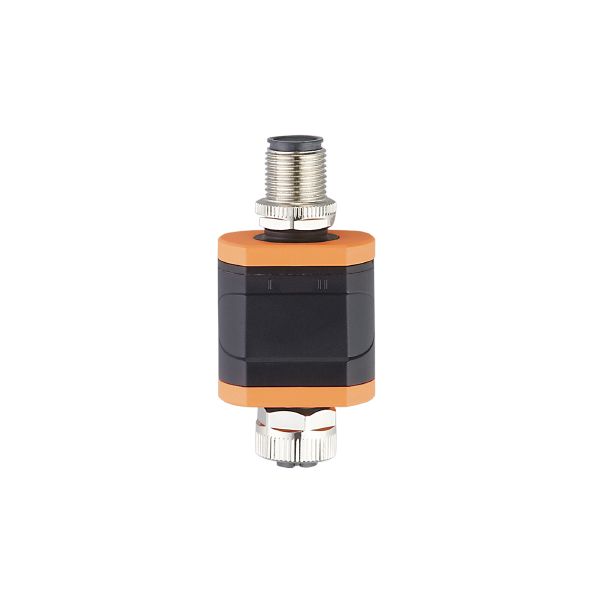

DP1223 Converter IO-Link - 0...10 V Converter IO-Link/2x0-10V
Brand: IFM Electronic
Code: DP1223
- Easy setting of the output voltage via cyclical IO-Link process values
- Two analogue outputs controllable via IO-Link
- Digital transmission eliminates the risk of EMC interference
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | 300 |
| Max. current load total [A] | 0.2 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Number of analogue outputs | 2 |
|---|---|
| Analogue voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 3000 |
| Precision analogue output [%] | 0,25 |
Interfaces
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Smart Sensor | ||||||||
| SIO mode | no | ||||||||
| Required master port type | A/B | ||||||||
| Process data analogue | 2 | ||||||||
| Min. process cycle time [ms] | 3.6 | ||||||||
| IO-Link process data (cyclical) |
| ||||||||
| IO-Link functions (acyclical) | application specific tag | ||||||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...70 | |||
|---|---|---|---|---|
| Note on ambient temperature |
| |||
| Storage temperature [°C] | -25...70 | |||
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) | |||
| Max. height above sea level [m] | 4000 | |||
| Protection | IP 67 | |||
| Pollution degree | 2 |
Tests / approvals
| MTTF [years] | 432 |
|---|
Mechanical data
| Weight [g] | 91 |
|---|---|
| Materials | housing: PA |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP1223-00 — 26.08.2022 —
