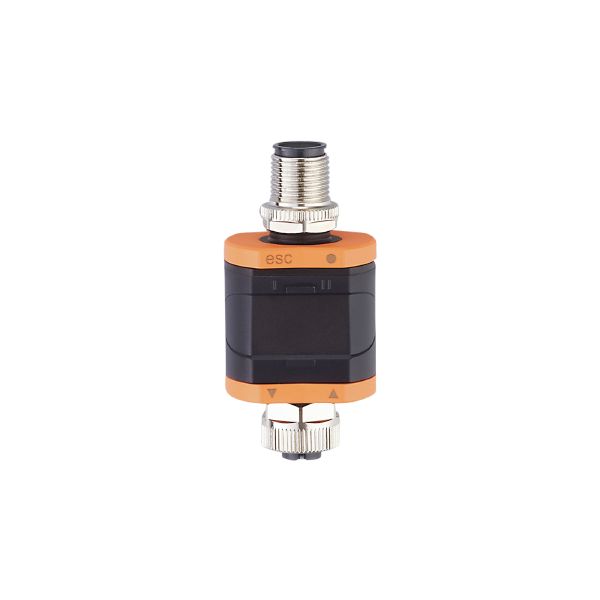

DP2200 Evaluation system and display for analogue signals Analog Threshold Displ./4-20mA
Brand: IFM Electronic
Code: DP2200
- For the reliable limit value monitoring of analogue sensors
- Clearly visible LED display with red/green colour change
- User-friendly communication and parameterisation via IO-Link
- Compact housing with high protection rating
- Reliable signal conversion of analogue measured values in IO-Link
Application
| Application | decentralised display, preprocessing and conversion of analogue signals |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | 30...900 |
| Max. current load total [A] | 0.8 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 1; Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Inputs
| Sensor supply of the inputs | from operating voltage |
|---|---|
| Number of analogue inputs | 1 |
| Analogue input (current) [mA] | 4...20 |
Outputs
| Number of digital outputs | 1 |
|---|---|
| Voltage range DC [V] | 10...30 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. current load per output [mA] | 50 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20 |
| Resolution of analogue output | 10 Bit |
Accuracy / deviations
| Accuracy | 0.75; (% of the final value of the measuring range analogue output) |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Supported DeviceIDs |
|
| Transmission type | COM2 (38,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 1 |
| Process data binary | 1 |
| Min. process cycle time [ms] | 3 |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Max. relative air humidity [%] | 90; (linearly decreasing to 50 % (40 °C); non condensing) |
| Max. height above sea level [m] | 4000 |
| Protection | IP 67 |
| Pollution degree | 2 |
Tests / approvals
| MTTF [years] | 373 |
|---|
Mechanical data
| Weight [g] | 108 |
|---|---|
| Dimensions [mm] | 63 x 30 x 24 |
| Materials | PA |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector: 1 x M12; coding: A |
Electrical connection - socket
| Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP2200-02 — 13.06.2023 —
