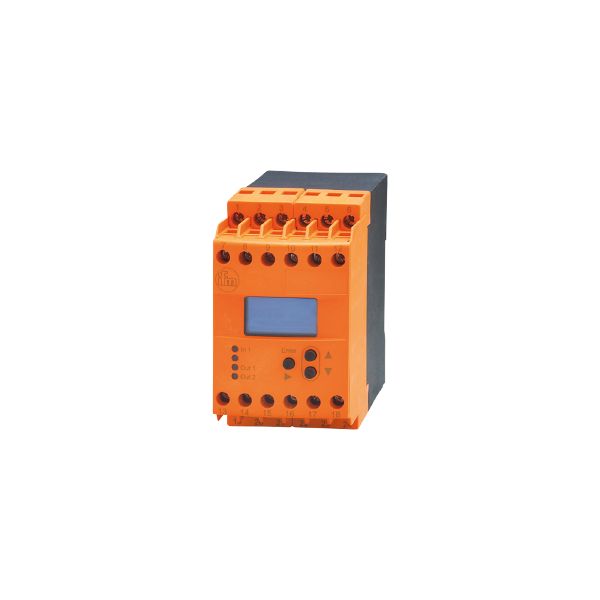

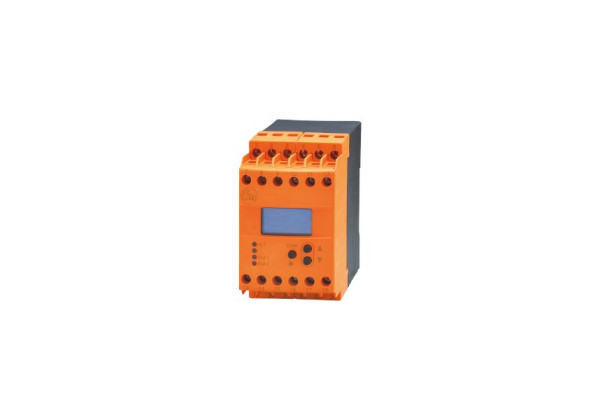

DR2503 - ecomat200-MONITOR/FD-1 /110-240VAC/DC

Code: DR2503

Reliable monitoring of rotational direction, frequency, rotational speed and speed
High input frequency of up to 60,000 pulses / minute
One switching output for rotational direction and one for rotational speed monitoring
Various configurable monitoring functions
Clearly readable, luminous OLED display for programming and actual value indication

Product characteristics

Housing	housing for DIN rail mounting
Dimensions [mm]	78 x 45 x 124.7

Application

Application	pulse evaluation system with microprocessor for direction monitoring and frequency; rotational speed and speed

Electrical data

Nominal voltage AC [V]	110...240
Nominal voltage DC [V]	27
Nominal voltage tolerance [%]	< 10
Nominal voltage tolerance 2 [%]	20...10
Nominal frequency AC [Hz]	50...60
Power consumption [W]	3
Auxiliary energy for sensors DC [V]	19.6...27.7; (SELV, ≤ 150 mA)

Inputs / outputs

Number of inputs and outputs	Number of relay outputs: 2

Outputs

Number of relay outputs	2
Contact rating	6 A (250 V AC); B300, R300

Operating conditions

Ambient temperature [°C]	-40...60
Storage temperature [°C]	-40...85
Max. relative air humidity [%]	80; (40 °C: 50 %)
Protection	IP 50
Protection rating terminals	IP 20

Tests / approvals

EMC

EN 61010	2011
EMV 89/336/EWG
EN 61000-6-2	2005
EN 61000-6-4	2007

Mechanical data

Weight [g]	380.5
Housing	housing for DIN rail mounting
Dimensions [mm]	78 x 45 x 124.7
Materials	plastics

Displays / operating elements

Display

	OLED display, 128 x 64 pixels luminous
switching status	LED, green

Remarks

The unit complies with overvoltage category II; pollution degree 2

Electrical connection

	dual-chamber terminals: 2 x...2.5 mm²; AWG 14
