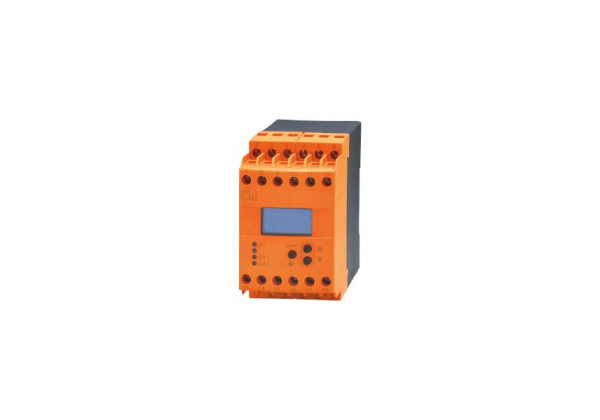

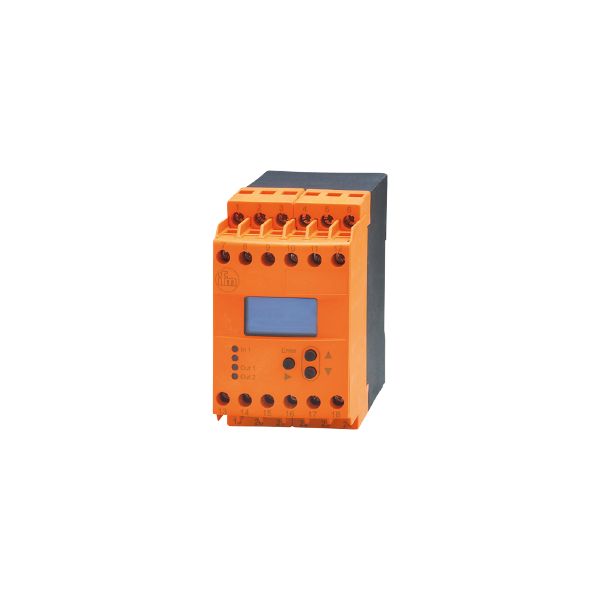

DS2505 - ecomat200-MONITOR/FS-2 /110-240VAC/DC
Brand: IFM Electronic
Code: DS2505
- Reliable detection of slip, synchronism and pulse difference
- Two switch points for slip/synchronous monitoring
- Various configurable monitoring functions
- Clearly readable, luminous OLED display for programming and actual value indication
Product characteristics
| Dimensions [mm] | 78 x 45 x 124.7 |
|---|
Application
| Application | pulse evaluation system with microprocessor for slip and synchronous monitoring; evaluation of pulse differences |
|---|
Electrical data
| Nominal voltage AC [V] | 110...240 |
|---|---|
| Nominal voltage DC [V] | 27 |
| Nominal voltage tolerance [%] | < 10 |
| Nominal voltage tolerance 2 [%] | 20...10 |
| Nominal frequency AC [Hz] | 50...60 |
| Power consumption [W] | 3 |
| Auxiliary energy for sensors DC [V] | 19.6...27.7; (SELV, ≤ 150 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of relay outputs: 2 |
|---|
Outputs
| Number of relay outputs | 2 |
|---|---|
| Contact rating | 6 A (250 V AC); B300, R300 |
Measuring/setting range
| Measuring range [Hz] | 0.1...400 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...60 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 80; (40 °C: 50 %) |
| Protection | IP 50 |
| Protection rating terminals | IP 20 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 377.5 |
|---|---|
| Dimensions [mm] | 78 x 45 x 124.7 |
| Materials | plastics |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
|---|
Electrical connection
| dual-chamber terminals: 2 x...2.5 mm²; AWG 14 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DS2505-00 — 13.04.2023 —
