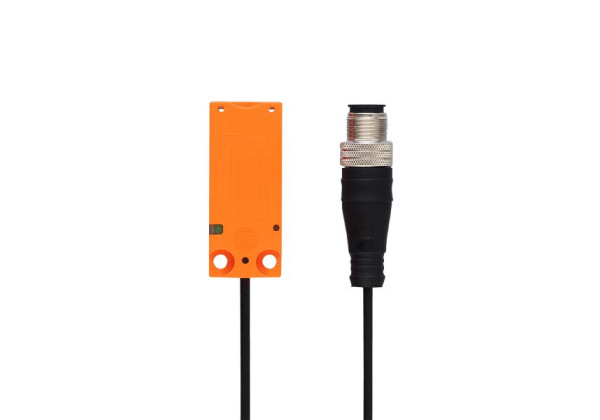

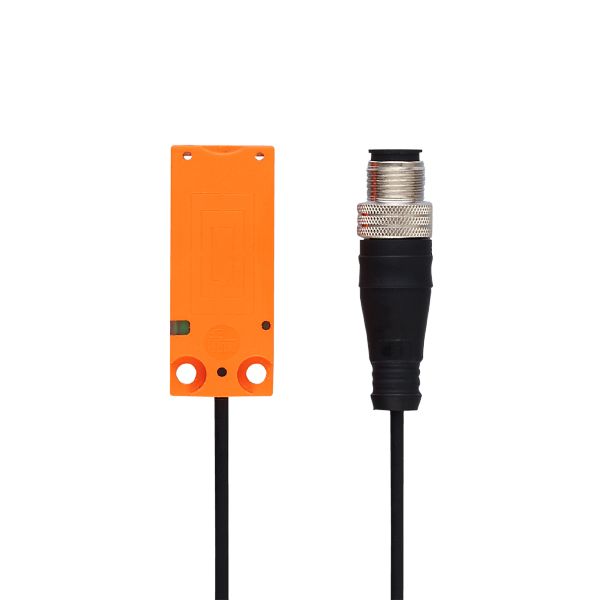

DSU100 IO-Link data memory DSU____KQRWIOUS03

Code: DSU100

128 kBytes offer sufficient memory capacity for relevant data and histories
Process-relevant information is provided locally
Digital type label: simple registration of interchangeable components to the PLC

The COM3 interface ensures fast data transmission

Application

Application	data storage via IO-Link

Electrical data

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 50
Protection class	III
Memory size [bit]	1042432
Memory type	FRAM
Max. read cycles	unlimited
Max. write cycles	unlimited

Interfaces

Communication interface

IO-Link

Transmission type

COM3 (230,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Device Identification

SIO mode

Required master port type

Supported DeviceIDs

Type of operation	DeviceID
Default	1423

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67; IP 69K

Tests / approvals

EMC

EN IEC 61000-6-2
EN IEC 61000-6-4

Shock resistance

EN 60068-2-27	40 g 6 ms / repetitive
EN 60068-2-27	50 g 11 ms / not repetitive

Vibration resistance

EN 60068-2-6

20 g 10...2000 Hz

UL approval

Ta	-20...60 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
File number UL	E205959

Mechanical data

Weight [g]	59.8
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	20 x 7 x 48
Materials	PBT; TPU; stainless steel

Displays / operating elements

Display

operation	1 x LED, green
Memory access	1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 1 m, PUR; 3 x 0.14 mm²
Connection	Connector: 1 x M12; coding: A
