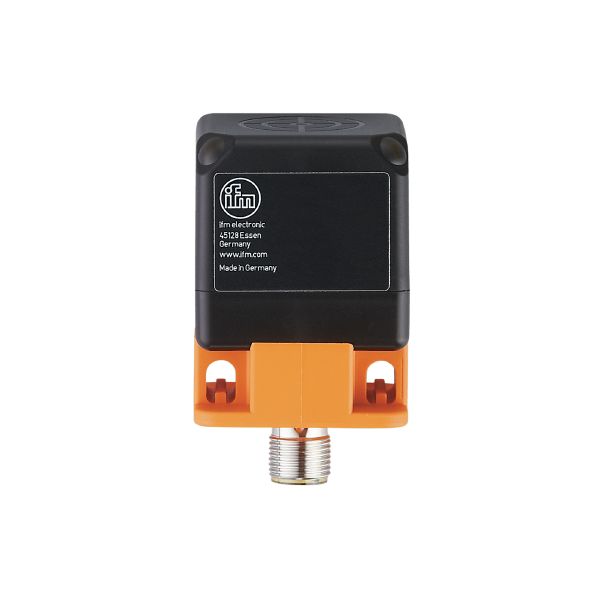

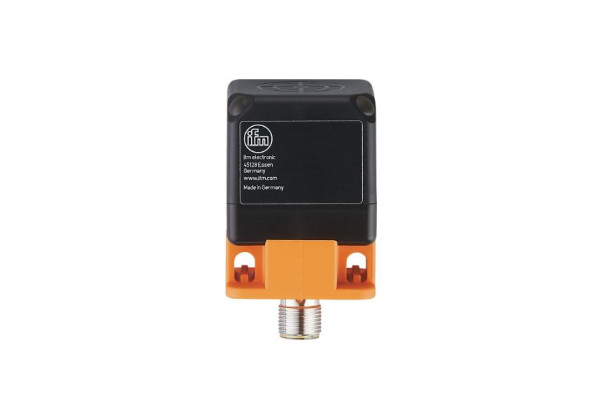

DTA200 - efector190-DTSLF MCRWASUS01
Brand: IFM Electronic
Code: DTA200
- Reliable identification of workpiece carriers in routing conveyors
- Non-contact reading and writing of RFID transponders (ID tags)
- Compact and at a low cost: Antenna and evaluation in one housing
- With AS-i interface
- For use in production lines and in material flow control
Application
| Application | detection of objects on transport equipment | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Singapore; China | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Current consumption [mA] | < 75 |
| Protection class | III |
| Operating frequency [MHz] | 0,125 |
Outputs
| Electrical design | AS-i |
|---|
Detection zone
| Travel speed [m/s] | < 0.5 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Distance read/read head front | 150 | |||||||||
| Distance read/read head side | 150 | |||||||||
| Note on distance read/read head |
| |||||||||
| Distance write/read head front [mm] | 300 | |||||||||
| Distance write/read head side [mm] | 300 | |||||||||
| Note on distance write/read head |
| |||||||||
| Distance to the ID tag [mm] |
|
Interfaces
| Communication interface | AS-i |
|---|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| MTTF [years] | 456 |
AS-i classification
| AS-i I/O configuration [hex] | 7 |
|---|---|
| AS-i ID code [hex] | 4 |
| AS-i certificate | 87201 |
Mechanical data
| Weight [g] | 168.3 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Dimensions [mm] | 40 x 40 x 54 |
| Materials | PA |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12, rotatable, locking; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTA200-01 — 21.04.2011 —
