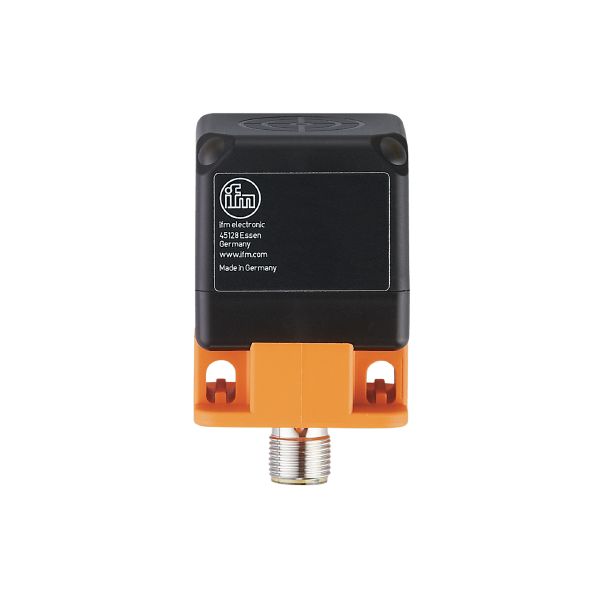

DTC510 RFID read/write head HF DTCHF MCRWCOUS03

Brand: IFM Electronic

Code: DTC510

Application

Radio approval for

USA; Canada; EU/RED; Australia; Japan; Taiwan; India; Singapore; China; South Korea; Israel

Note on radio approval

The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

Operating voltage [V]	9...32 DC
Current consumption [mA]	≤ 50 (24 V) / ≤ 80 (12 V)
Protection class	III
Operating frequency [MHz]	13,56
RFID standard	ISO 15693

Detection zone

Distance to the ID tag [mm]

≤ 60

Interfaces

Communication interface	CAN

CAN

Protocol	CANopen

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67; IP 69K

Tests / approvals

Shock resistance

EN 60068-2-27	40 g 6 ms / repetitive
EN 60068-2-27	50 g 11 ms / not repetitive

Vibration resistance

EN 60068-2-6

20 g 10...2000 Hz

Mechanical data

Weight [g]	180
Housing	rectangular
Sensing face	5 positions selectable
Dimensions [mm]	40 x 40 x 54
Materials	housing: PA; metal parts: stainless steel

Displays / operating elements

Display

Preoperational Mode	1 x LED, green lights
Operational Mode	1 x LED, green flashing
tag communication	1 x LED, yellow lights
errors	1 x LED, red flashing

Remarks

For the distances to other ID tags see the respective data sheet (E803xx)

Pack quantity

1 pcs.

Electrical connection

	Connector: 1 x M12, rotatable, locking; coding: A
