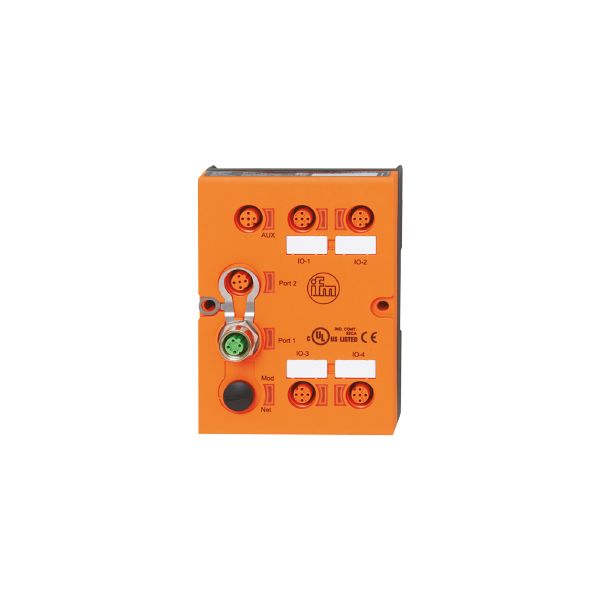

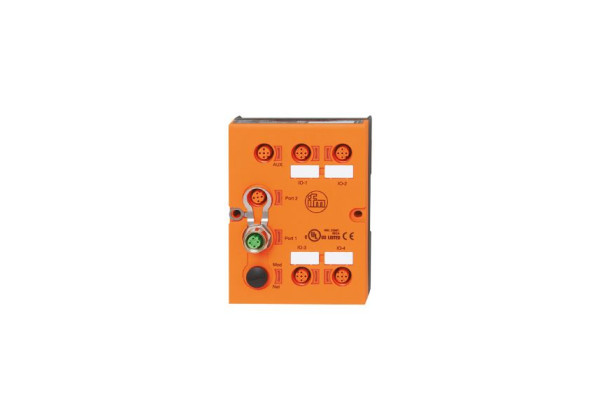

DTE103 - DTELF/HFABRWECUS00
Brand: IFM Electronic
Code: DTE103
- RFID evaluation unit with EtherCAT
- With four channels for the connection of RFID antennas or digital I/Os
- Connection of the antennas with ifm standard connection cables
- Optimised Ethernet TCP/IP web server for device setup, diagnostics and monitoring
- High protection rating for the requirements of harsh industrial environments
Application
| Application | for up to 4 read/write heads type ANT41x/ANT51x |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 3000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|
Outputs
| Number of digital outputs | 4 |
|---|---|
| Max. current load per output [mA] | 500; (IO 1,2; IO 3,4: 1000 mA) |
Interfaces
| Communication interface | Ethernet | |||
|---|---|---|---|---|
| Factory settings |
|
| Protocol | EtherCAT |
|---|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -20...85 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
| ||
| MTTF [years] | 108.28 |
Mechanical data
| Weight [g] | 394 |
|---|---|
| Dimensions [mm] | 115 x 46.2 x 85 |
| Materials | upper part: PA Grivory GV4H orange; upper part: TPE; lower part: GD-AlSi12 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| IN / OUT | Connector: 2 x M12; coding: D |
|---|
Electrical connection - Process connection
| IO 1...4 | Connector: 4 x M12; coding: A |
|---|
Electrical connection - power supply
| AUX | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTE103-00 — 28.07.2015 —
