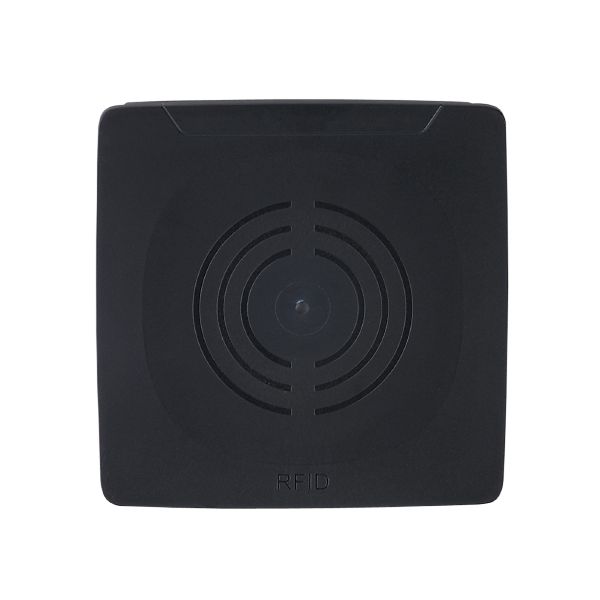

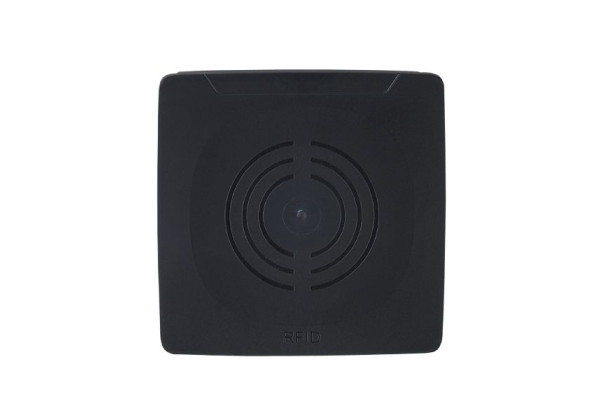

DTE604 Compact RFID device with fieldbus interface DTRHF HLRWENUS03

Brand: IFM Electronic

Code: DTE604

Application

Radio approval for

USA; Canada; EU/RED; Australia; China; South Korea; Japan; Taiwan; Singapore; Malaysia; India

Note on radio approval

The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

Operating voltage [V]	19.2...28.8 DC
Current consumption [mA]	500
Protection class	III
Operating frequency [MHz]	13,56
RFID standard	ISO 15693

Outputs

Max. current load per output [mA]	100; (max.)

Detection zone

Distance write/read head front [mm]

600

Distance write/read head side [mm]

850

Note on distance write/read head

100%

transmission power

Distance to the ID tag [mm]

50 mm tag	:	≤ 150
ISO card	:	≤ 180

Interfaces

Communication interface	Ethernet

Ethernet - TCP/IP

Protocol

TCP/IP

Factory settings

IP address: 192.168.0.79

subnet mask: 255.255.255.0

gateway IP address: 192.168.0.100

Usage type

parameter setting; data transmission

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

Shock resistance

IEC 60028-2-27	40 g (6 ms) / bump
	50 g (11 ms) / single shock

Vibration resistance

EN 60068-2-6

2 g (10...150 Hz)

MTTF [years]

130

Mechanical data

Weight [g]	641.5
Dimensions [mm]	113 x 118.5 x 50
Materials	PBT / PC; stainless steel; aluminium

Displays / operating elements

Display

power supply	1 x LED, green
LED bar display	4 x LED, yellow signal strength ID tag
status	2 x LED, green/red fieldbus interface
status	2 x LED, green/yellow Ethernet

Remarks

Pack quantity	1 pcs.

Electrical connection - Ethernet

ETH1 / ETH2	Connector: 2 x M12; coding: D

Electrical connection - power supply

PWR	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTE604-00 — 06.10.2023 —
