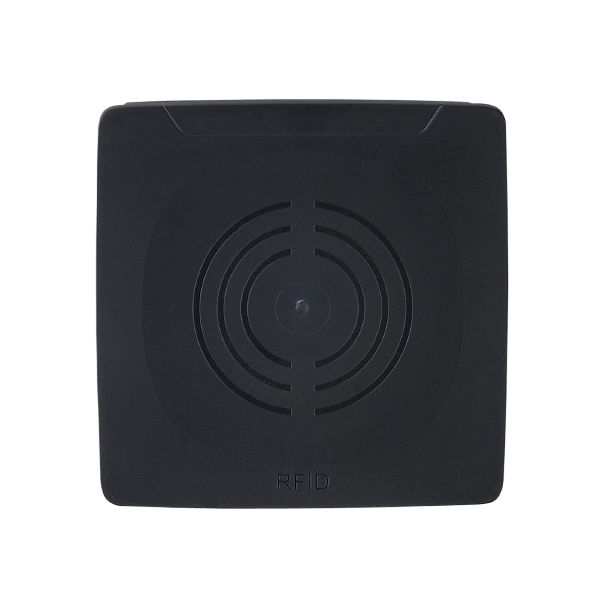

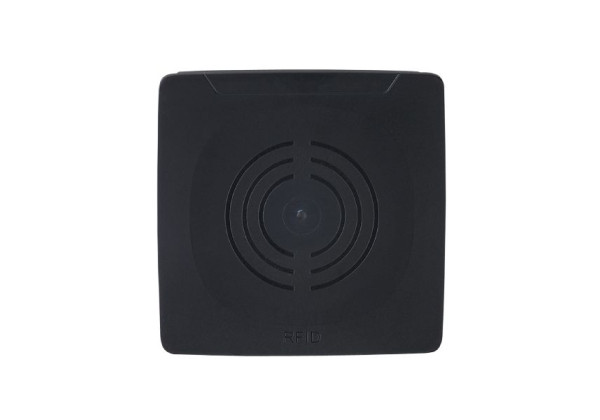

DTE801 compact RFID device DTRUHFE HLRWPNUS04
Brand: IFM Electronic
Code: DTE801
Application
| Radio approval for | EU/RED; India | |
|---|---|---|
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 19.2...28.8 DC |
|---|---|
| Current consumption [mA] | 500 |
| Power consumption [W] | 8.6 |
| Protection class | III |
| Operating frequency [MHz] | 865...868 (ETSI) |
| RFID standard | EPC Class1 GEN2/ISO 18000-63 |
| Transmission power ERP [mW] | 120; (maximum: 200 mW) |
Outputs
| Max. current load per output [mA] | 100; (max.) |
|---|
Interfaces
| Communication interface | Ethernet |
|---|
| Protocol | PROFINET |
|---|---|
| Usage type | data transmission |
| Protocol | TCP/IP | |||
|---|---|---|---|---|
| Factory settings |
| |||
| Usage type | parameter setting |
Operating conditions
| Ambient temperature [°C] | -20...55 | |
|---|---|---|
| Note on ambient temperature |
| |
| Storage temperature [°C] | -25...80 | |
| Protection | IP 67 |
Tests / approvals
| Shock resistance |
| ||||
|---|---|---|---|---|---|
| Vibration resistance |
| ||||
| MTTF [years] | 58 |
Mechanical data
| Weight [g] | 705.8 |
|---|---|
| Dimensions [mm] | 113 x 118.6 x 50 |
| Materials | housing: aluminium; PBT / PC; stainless steel |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Ethernet
| ETH1 / ETH2 | Connector: 2 x M12; coding: D |
|---|
Electrical connection - power supply
| PWR | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTE801-01 — 09.10.2023 —
