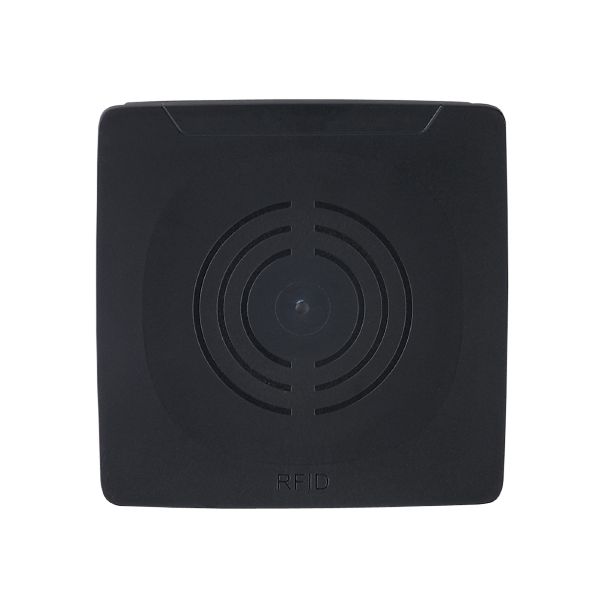

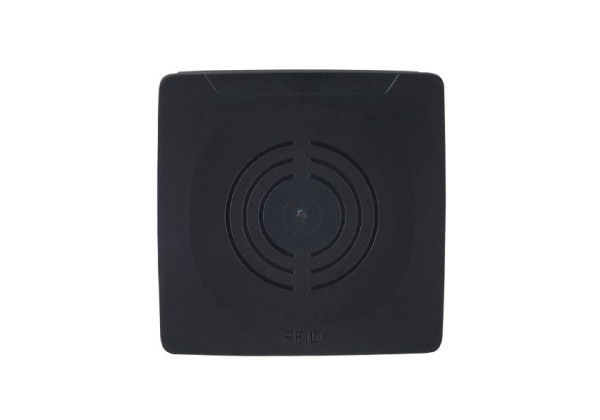

DTE902 compact RFID device DTRUHFA HLRWEIUS04

Code: DTE902

Application

Radio approval for	USA; Canada; Mexico

Electrical data

Operating voltage [V]	19.2...28.8 DC
Current consumption [mA]	500
Power consumption [W]	8.6
Protection class	III
Operating frequency [MHz]	902...928
RFID standard	EPC Class1 GEN2/ISO 18000-63
Transmission power EIRP [mW]	200; (maximum: 250 mW)

Outputs

Max. current load per output [mA]	100; (max.)

Interfaces

Communication interface	Ethernet

Ethernet - EtherNet/IP

Protocol	EtherNet/IP
Usage type	data transmission

Ethernet - TCP/IP

Protocol

TCP/IP

Factory settings

IP address: 192.168.0.79

subnet mask: 255.255.255.0

gateway IP address: 192.168.0.100

Usage type

parameter setting; data transmission

Operating conditions

Ambient temperature [°C]

-20...55

Note on ambient temperature

with mounting plate and cooling element: -20...60 °C

Storage temperature [°C]

-25...80

Protection

IP 67

Tests / approvals

Shock resistance

IEC 60028-2-27	40 g (6 ms) / bump
	50 g (11 ms) / single shock

Vibration resistance

EN 60068-2-6

2 g (10...150 Hz)

Mechanical data

Weight [g]	693.3
Dimensions [mm]	113 x 118.6 x 50
Materials	housing: aluminium; PBT / PC; stainless steel

Displays / operating elements

Display

power supply	1 x LED, green
LED bar display	4 x LED, yellow signal strength ID tag
status	2 x LED, green/red fieldbus interface
status	2 x LED, green/yellow Ethernet

Remarks

Pack quantity	1 pcs.

Electrical connection - Ethernet

ETH1 / ETH2	Connector: 2 x M12; coding: D

Electrical connection - power supply

PWR	Connector: 1 x M12; coding: A
