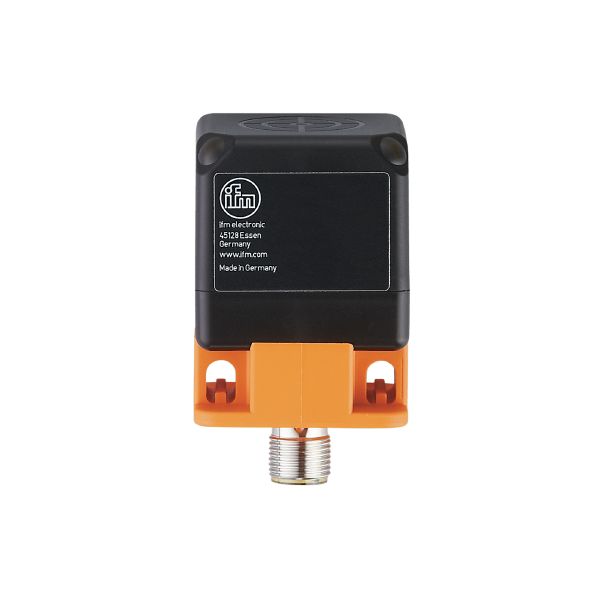

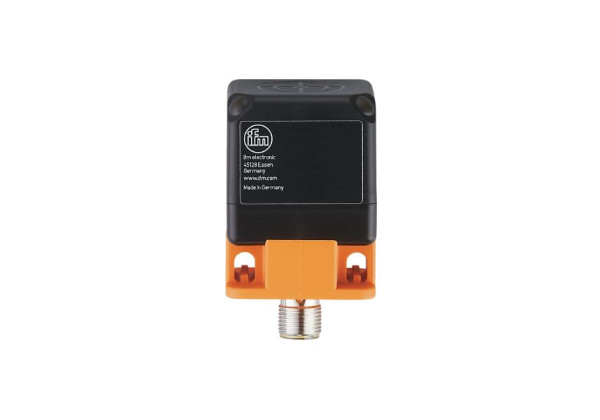

DTI513 RFID read/write head HF DTRHF MCRWIOUS03

Brand: IFM Electronic

Code: DTI513

For the reliable identification of ID tags on workpiece carriers and products
Robust housing for applications in mounting, feeding and handling technology
High protection rating for the requirements of harsh industrial environments
Five positions of the sensing face selectable
For connection to IO-Link master version 1.1 by means of tried-and-tested M12 connection

Application

detection of objects on transport equipment

Radio approval for

USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Malaysia

Note on radio approval

The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

Operating voltage [V]	19.2...28.8 DC
Current consumption [mA]	< 50
Protection class	III
Operating frequency [MHz]	13,56
RFID standard	ISO 15693

Detection zone

Distance to the ID tag [mm]

read	:	≤ 60
static
referred to 30 mm coin tag; I-CODE SLI

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Device Identification

SIO mode

Required master port type

Supported DeviceIDs

Type of operation	DeviceID
Default	967

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67; IP 69K

Tests / approvals

Shock resistance

EN 60068-2-27	40 g 6 ms / repetitive
EN 60068-2-27	50 g 11 ms / not repetitive

Vibration resistance

EN 60068-2-6

20 g 10...2000 Hz

UL approval

Ta	-20...60 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
File number UL	E205959

Mechanical data

Weight [g]	192
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	housing: PA; metal parts: stainless steel

Displays / operating elements

Display

operation	1 x LED, green
tag communication	1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTI513-00 — 05.07.2023 —
