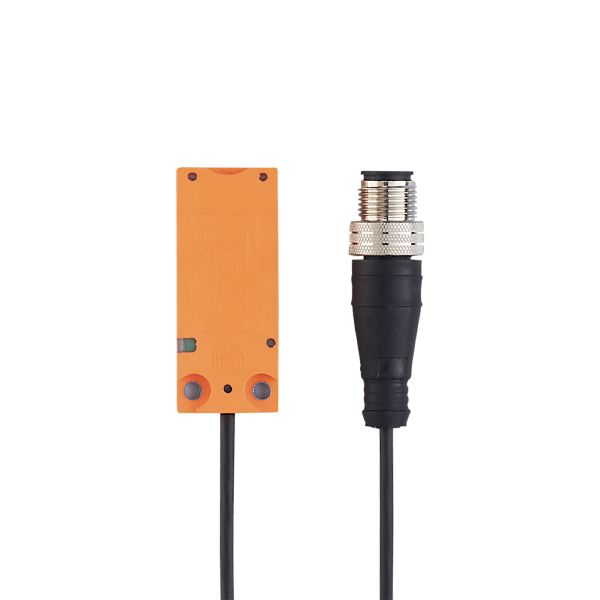

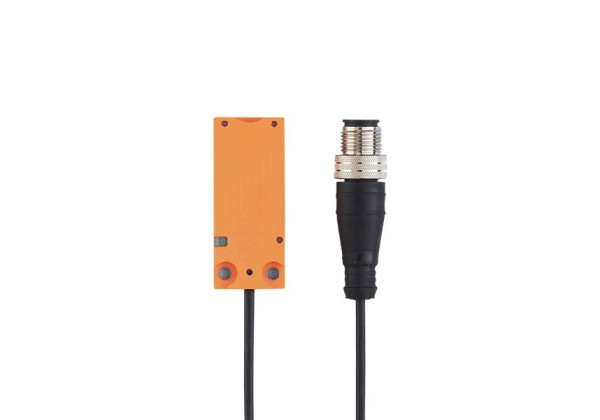

DTI516 RFID read/write head HF DTRHF KQRWIOUS03

DTI516 RFID read/write head HF DTRHF KQRWIOUS03

Code: DTI516
Application
Application detection of objects on transport equipment
Radio approval for EU/RED; Japan; Australia; China; Taiwan; India; Singapore; USA; Canada; Malaysia
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Electrical data
Operating voltage [V] 18...30 DC
Current consumption [mA] < 60
Protection class III
Operating frequency [MHz] 13,56
RFID standard ISO 15693
Detection zone
Distance write/read head front [mm] 170
Distance write/read head side [mm] 160
Distance to the ID tag [mm]
referred to 30 mm coin tag and antenna installed on metal, I-CODE SLI : ≤ 32
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Device Identification
SIO mode no
Required master port type A
Supported DeviceIDs
Type of operation DeviceID
Default 967
Operating conditions
Ambient temperature [°C] -20...60
Storage temperature [°C] -25...80
Protection IP 67; IP 69K
Tests / approvals
Shock resistance
EN 60068-2-27 40 g 6 ms / repetitive
EN 60068-2-27 50 g 11 ms / not repetitive
Vibration resistance
EN 60068-2-6 20 g 10...2000 Hz
UL approval
Ta -20...60 °C
Enclosure type Type 1
power supply Limited Voltage/Current
File number UL E205959
Mechanical data
Weight [g] 88.5
Housing rectangular
Mounting non-flush mountable
Dimensions [mm] 20 x 7 x 48
Materials PBT; TPU; stainless steel
Displays / operating elements
Display
operation 1 x LED, green
tag communication 1 x LED, yellow
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connector: 1 x M12; coding: A
Electrical connection - Cable
Connection Cable: 2 m, PUR; 3 x 0.14 mm²
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTI516-01 — 05.07.2023 —
