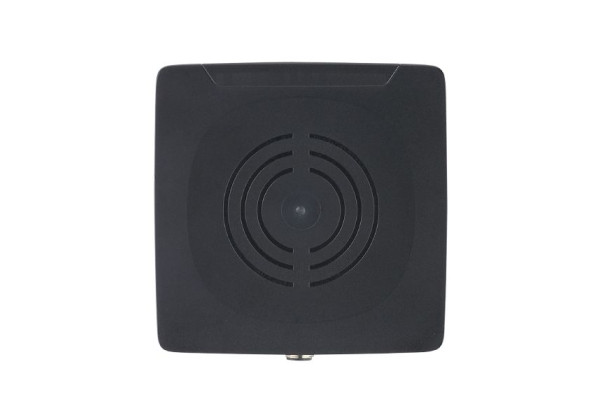

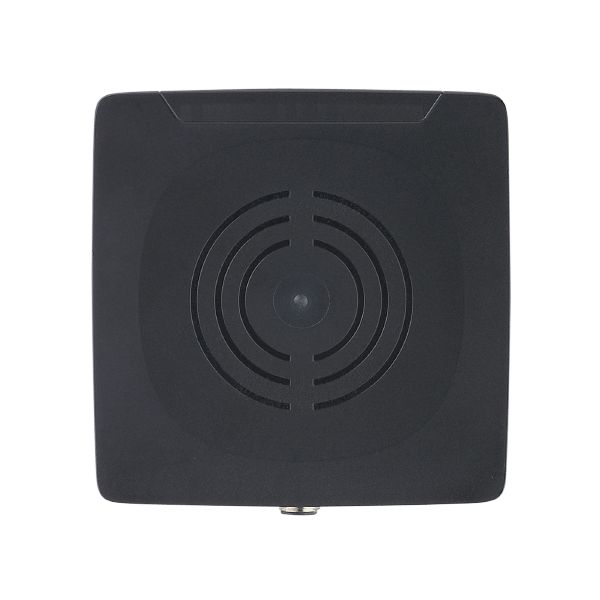

DTI801 RFID UHF compact unit DTRUHFE HLRWIOUS04
Brand: IFM Electronic
Code: DTI801
Application
| Application | detection of objects on transport equipment | |
|---|---|---|
| Radio approval for | EU/RED; Vereinigtes Königreich | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 250 |
| Power consumption [W] | 4.8 |
| Protection class | III |
| Operating frequency [MHz] | 865...868 |
| RFID standard | EPC Class1 GEN2/ISO 18000-63 |
| Transmission power ERP [mW] | 120; (maximum: 200 mW) |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM3 (230,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance |
| ||||
|---|---|---|---|---|---|
| Vibration resistance |
| ||||
| Electrical protection |
|
Mechanical data
| Weight [g] | 637.5 |
|---|---|
| Dimensions [mm] | 120 x 50 x 113 |
| Materials | PBT; PC; stainless steel; aluminium |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTI801-00 — 05.07.2023 —
