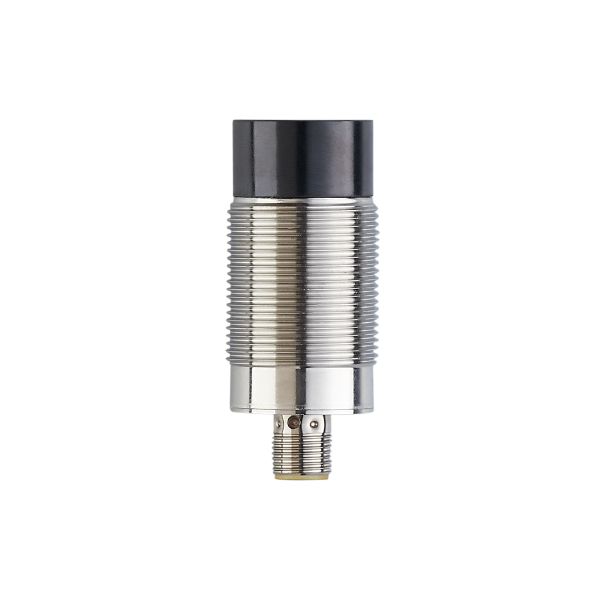

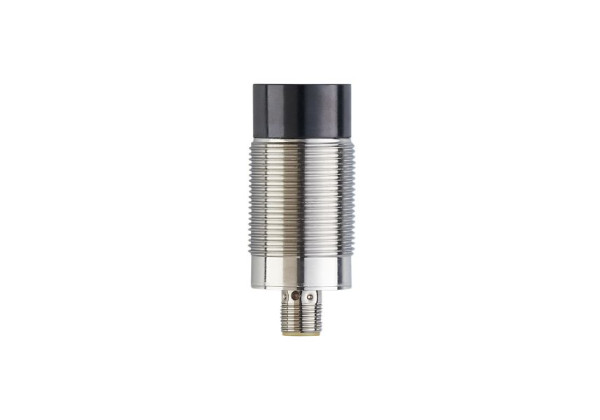

DTM435 RFID read/write head with CAN interface and CANopen protocol DTMHF INRWCOUS03

Brand: IFM Electronic

Code: DTM435

RFID read/write head HF for flush mounting
All in one unit: antenna, evaluation and CANopen interface
Suited for use in mobile machines
High protection rating for the requirements of harsh industrial environments
Large operating temperature range and high shock and vibration resistance

Application

Radio approval for

USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine; Brazil

Note on radio approval

The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Electrical data

Operating voltage [V]	9...32 DC
Current consumption [mA]	< 50 (24 V) / < 80 (12 V)
Protection class	III
Operating frequency [MHz]	13,56
RFID standard	ISO 15693

Detection zone

Distance write/read head front [mm]

200

Distance write/read head side [mm]

100

Distance to the ID tag [mm]

≤ 55

Interfaces

Communication interface	CAN

CAN

Protocol	CANopen

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 67; IP 69K

Tests / approvals

Shock resistance

EN 60068-2-27	40 g 6 ms / repetitive
EN 60068-2-27	50 g 11 ms / not repetitive

Vibration resistance

EN 60068-2-6

20 g 10...2000 Hz

MTTF [years]

475

Mechanical data

Weight [g]	175.15
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 70
Thread designation	M30 x 1.5
Materials	housing: stainless steel; Protective cover: PPS; LED window: PEI

Displays / operating elements

Display

Preoperational Mode	1 x LED, green lights
Operational Mode	1 x LED, green flashing
errors	1 x LED, red flashing
tag communication	1 x LED, yellow lights

Remarks

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; coding: A
