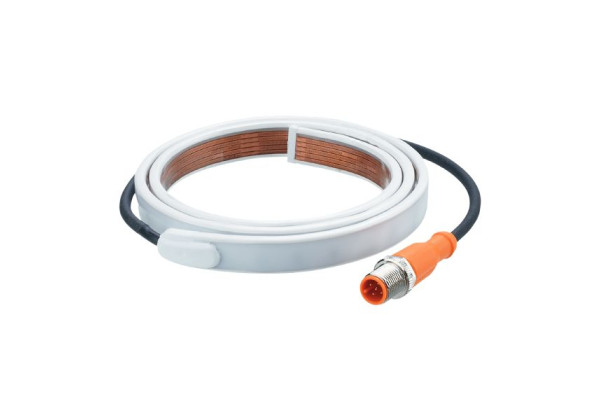

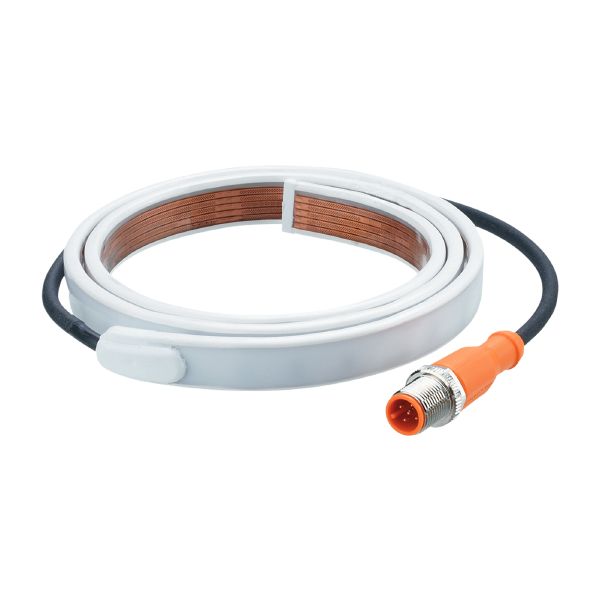

DV1003 LED strip RGBW LED-Stripe-RGBW-750mm-IP68
Brand: IFM Electronic
Code: DV1003
- LEDs in red, green, blue and white colour can be activated via individual connections
- Extremely robust, fully potted design with protection rating IP 68
- Bent or straight installation
- Powerful LEDs for high light yield
Application
| Application | signalling machine conditions |
|---|
Electrical data
| Operating voltage [V] | 21.6...26.4 DC | |
|---|---|---|
| Nominal voltage DC [V] | 24; (to SELV/PELV) | |
| Current consumption [mA] | 1200 | |
| Colour temperature [K] | 4000 | |
| Note on luminous flux [lm] |
| |
| Typ. lifetime [h] | 30000 |
Inputs
| Input circuit of digital inputs | 24 V PNP |
|---|
Operating conditions
| Ambient temperature [°C] | -20...45 |
|---|---|
| Max. relative air humidity [%] | 90 |
| Max. height above sea level [m] | 4000 |
| Protection | IP 68 |
| Pollution degree | 2 |
Tests / approvals
| Approval | IEC 61471; IEC 62031 |
|---|
Mechanical data
| Weight [g] | 90.1 |
|---|---|
| Dimensions [mm] | 765 x 14.2 x 4.5 |
| Materials | TPU |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 0.3 m | |
| Connector: M12; coding: A |
Diagrams and graphs
| | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DV1003-01 — 06.10.2023 —
