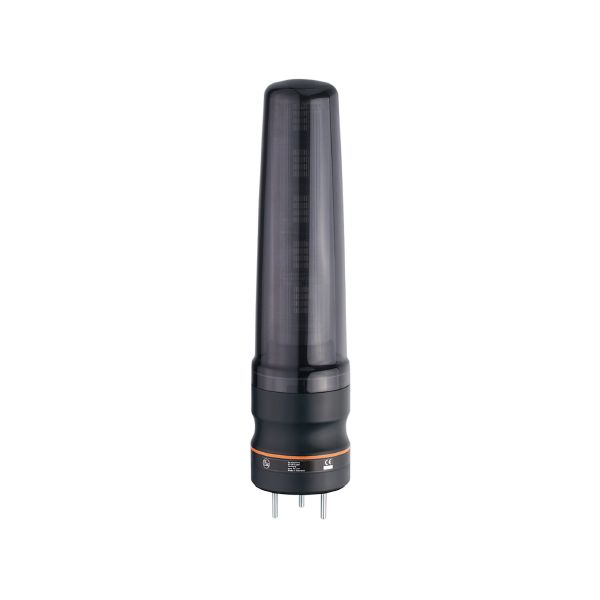

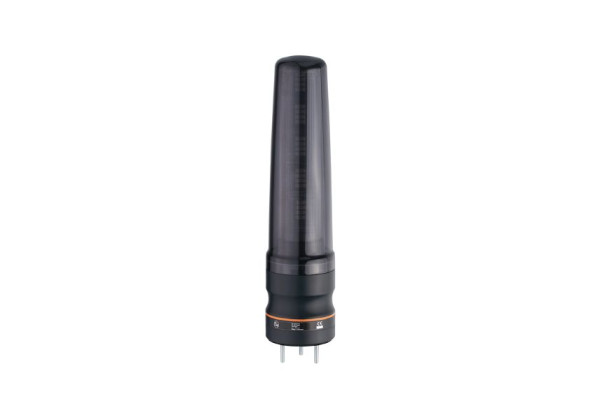

DV1530 5-segment light tower LED-Tower-5/Std/Buzzer

Code: DV1530

Perfect visibility
Modern LED RGB technology, long life, reduced stock-keeping
Different modes configurable via IO-Link or setting menu
Also as standard version with digital inputs
Quick and easy to mount

Application

Application	signalling machine conditions

Electrical data

Operating voltage [V]	18...30 DC; (to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	< 200

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 6

Inputs

Number of digital inputs	6
Input current High [mA]	6

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

SIO mode

yes

Required master port type

Min. process cycle time [ms]

3.2

Supported DeviceIDs

Type of operation	DeviceID
Default	850

Operating conditions

Ambient temperature [°C]	-25...50
Storage temperature [°C]	-40...75
Max. relative air humidity [%]	90
Air pressure [kPa]	< 106
Max. height above sea level [m]	2000
Protection	IP 54

Mechanical data

Weight [g]	567
Dimensions [mm]	Ø 70 / L = 284
Materials	housing: ABS; lens: PC

Displays / operating elements

Display

status	1 x LED, green
LED segment	5 x 4 LED

Acoustic signal

buzzer

Max. sound pressure [dB]

Accessories

Accessories (optional)

mounting base, E89060

wall bracket, E89061

Mounting adapter, E89063

bracket with lateral cable entry, E89064

mounting tube, E89065

mounting tube, E89066

mounting tube, E89067

Remarks

For further information please see the operating instructions.

Pack quantity

1 pcs.

Electrical connection - plug

Connection	Connector: M12; coding: A

Diagrams and graphs

base mounting

wall mounting
