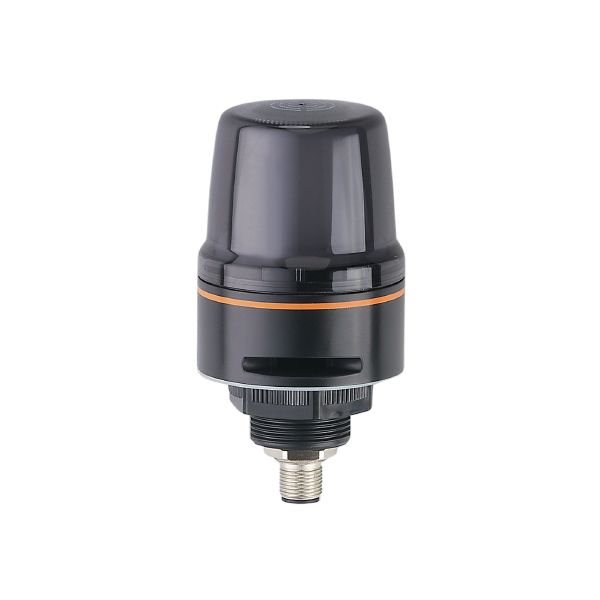

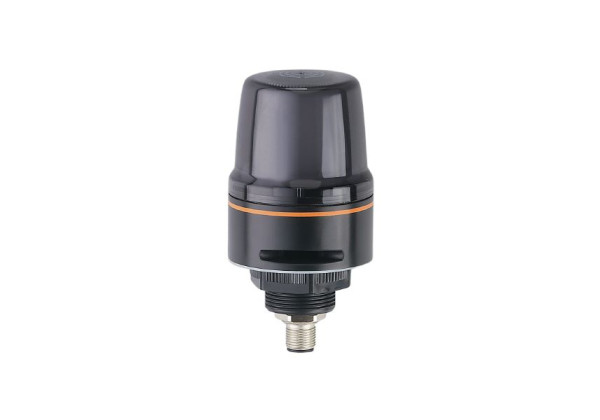

DV2131 1-segment signal lamp LED-Lamp/IOL/Buzzer/Button
Brand: IFM Electronic
Code: DV2131
- Control via IO-Link or digital inputs
- Perfect visibility
- Easy mounting using M30 fixing nut
- Loud buzzer with selectable melodies
- High protection rating also with buzzer
Application
| Application | signalling machine conditions |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV ; "supply class 2" to cURus) |
|---|---|
| Nominal voltage DC [V] | 24 |
| Current consumption [mA] | < 90 |
| Switch-on peak current [mA] | 400 |
| Switch-on peak current duration [ms] | 50 |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| SIO mode | yes | ||||
| Required master port type | A | ||||
| Min. process cycle time [ms] | 2.3 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...50 |
|---|---|
| Storage temperature [°C] | -40...75 |
| Max. relative air humidity [%] | 90 |
| Max. height above sea level [m] | 4000 |
| Protection | IP 65 |
| Pollution degree | 2 |
Mechanical data
| Weight [g] | 169.5 |
|---|---|
| Dimensions [mm] | Ø 56 / L = 72.5 |
| Materials | housing: PC |
Displays / operating elements
| Display |
| ||
|---|---|---|---|
| Operating elements |
| ||
| Acoustic signal | buzzer | ||
| Max. sound pressure [dB] | 90 |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| IO-Link | Connector: M12; coding: A |
|---|
Diagrams and graphs
| wall mounting | |
|---|
| base mounting | |
|---|
| light intensity distribution curve |
|
|---|
| light intensity distribution curve |
|
|---|
| light intensity distribution curve |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DV2131-00 — 17.05.2023 —
