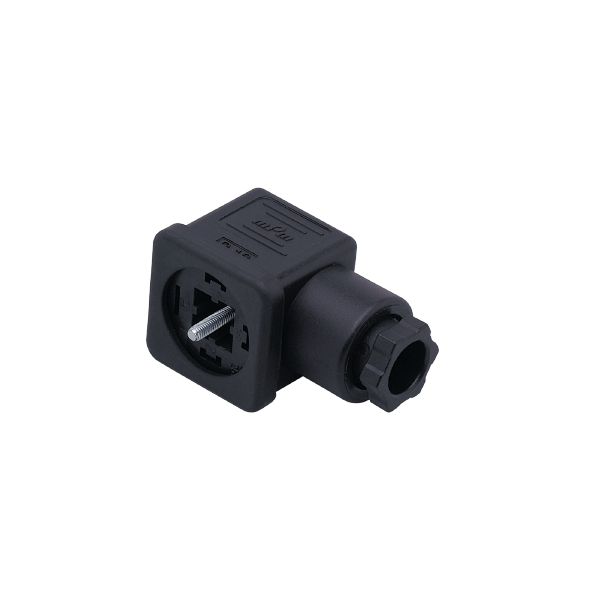

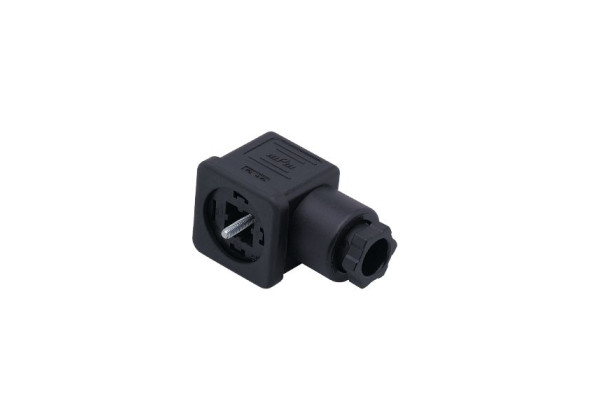

E10058 - ecomat400-VALVE PLUG TYPE A
Brand: IFM Electronic
Code: E10058
- Reliable connection of valves in the field
- Angled type for use where space is restricted
- Wide operating temperature range
Application
| Special feature | Free from silicone |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 45 AC / < 70 DC |
|---|---|
| Max. current load total [A] | 16 |
Operating conditions
| Ambient temperature [°C] | -40...125 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 28 |
|---|---|
| Dimensions [mm] | 42 x 29 x 28 |
| Materials | PA |
| Moulded-body material | PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals:...1.5 mm²; Cable sheath: Ø 6...8 mm |
Electrical connection - socket
| Connection | Connector: 1 x valve plug type A DIN, angled; Moulded body: PA |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10058-00 — 20.10.2020 —
