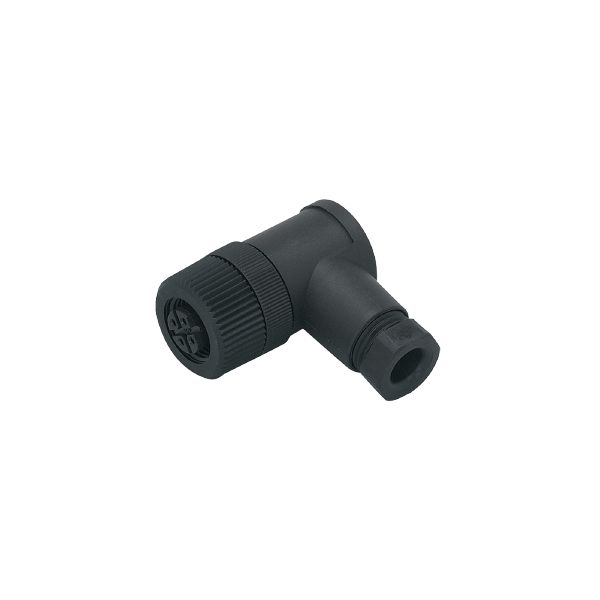

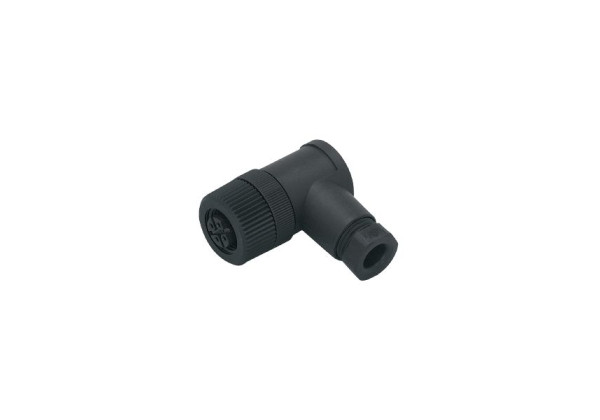

E10108 - ecomat400-SDOAH040PLSFKPG
Brand: IFM Electronic
Code: E10108
- Angled type for use where space is restricted
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Safe cable connection with screw terminals
Electrical data
| Operating voltage [V] | < 250 AC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 15.2 |
|---|---|
| Dimensions [mm] | 36 x 20 x 30 |
| Materials | PBT |
| Moulded-body material | PBT |
| Material nut | PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals:...0.5 mm²; Cable gland: PG 7 |
Electrical connection - socket
| Connection | Connector: 1 x M12, angled; coding: B; Moulded body: PBT; Locking: PA |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10108-00 — 06.03.2003 —
