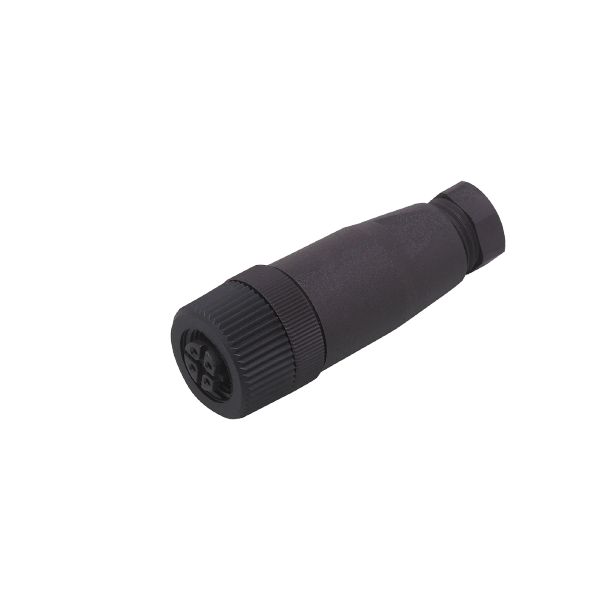

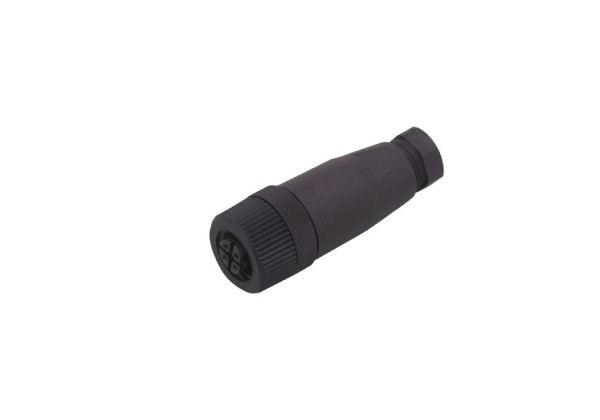

E10109 - ecomat400-SDOGH040PLSFKPG
Brand: IFM Electronic
Code: E10109
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Safe cable connection with screw terminals
Electrical data
| Operating voltage [V] | < 45 AC / < 70 DC |
|---|---|
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 14.9 |
|---|---|
| Dimensions [mm] | 18 x 18 x 46 |
| Materials | PA |
| Moulded-body material | PA |
| Material nut | PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals:...0.75 mm²; Cable sheath: Ø 4...6 mm |
Electrical connection - socket
| Connection | Connector: 1 x M12, straight; coding: B; Moulded body: PA; Locking: PA |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10109-00 — 06.03.2003 —
