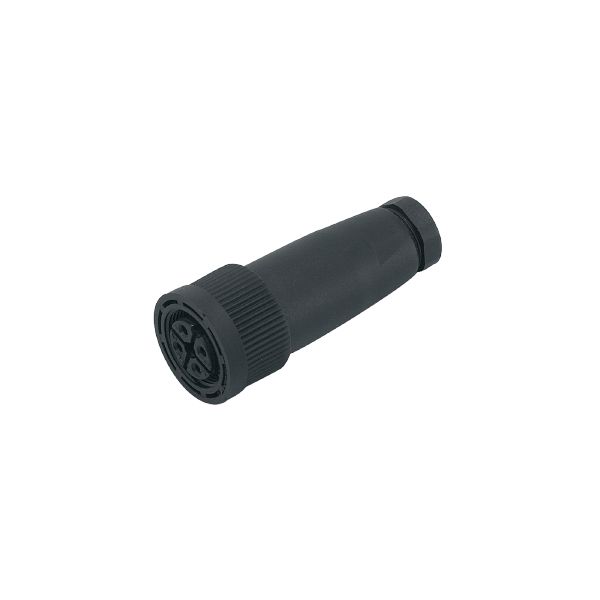

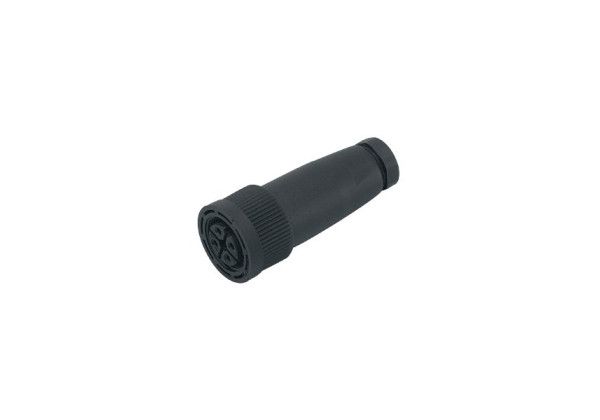

E10137 - ecomat400-SDOGJ040PLSFKPG
Brand: IFM Electronic
Code: E10137
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
- Safe cable connection with screw terminals
Electrical data
| Operating voltage [V] | < 250 AC/DC |
|---|---|
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 26.6 |
|---|---|
| Dimensions [mm] | 25 x 25 x 56 |
| Materials | PA |
| Moulded-body material | PA |
| Material nut | ULTRAMID |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals:...0.75 mm²; Cable sheath: Ø 6...8 mm |
Electrical connection - socket
| Connection | Connector: 1 x M18, straight; coding: A; Moulded body: PA; Locking: ULTRAMID |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10137-00 — 21.03.2022 —
