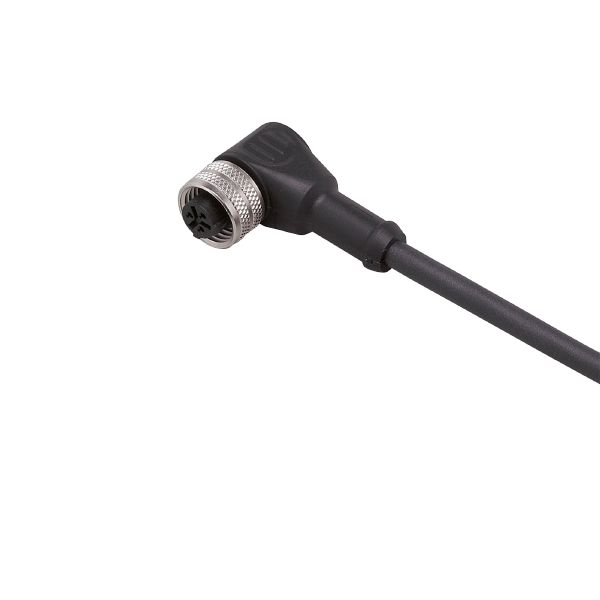

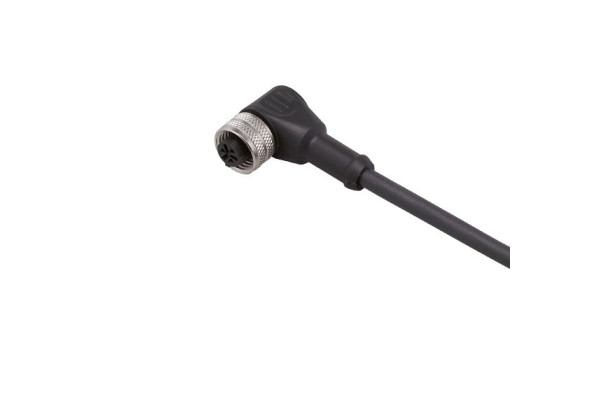

E10210 - ecomat400-ADOAA030MSS0005H03
Brand: IFM Electronic
Code: E10210
- Angled type for use where space is restricted
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Halogen-free; Drag chain suitability |
|---|
Electrical data
| Operating voltage [V] | < 250 AC / < 300 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 204.8 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 26 x 14.5 x 38.5 | ||||||||
| Materials | TPU black | ||||||||
| Moulded-body material | TPU | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PUR, Halogen-free, black, Ø 5.2 mm; 3 x 0.5 mm² (64 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x 1/2", angled; coding: C; Moulded body: TPU; Locking: brass, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10210-01 — 30.03.2011 —
