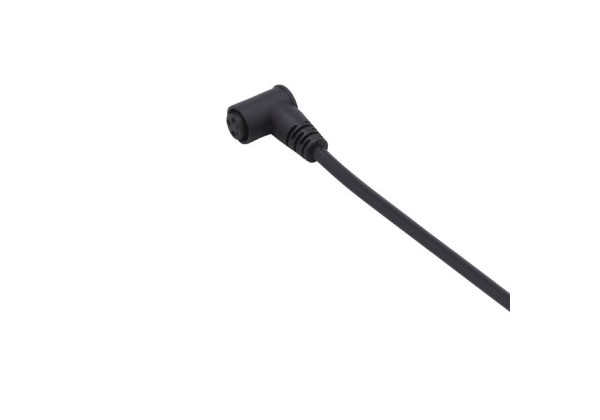

E10217 - ecomat400-ADOAG030--S0002E03
Brand: IFM Electronic
Code: E10217
- Angled type for use where space is restricted
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range
Electrical data
| Operating voltage [V] | < 60 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 33 |
|---|---|
| Dimensions [mm] | 13.3 x 8.5 x 20.5 |
| Materials | PUR |
| Moulded-body material | PUR |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PVC, black, Ø 3 mm; 3 x 0.14 mm² (18 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M8, angled; coding: A; Moulded body: PUR |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10217-01 — 23.06.2010 —
