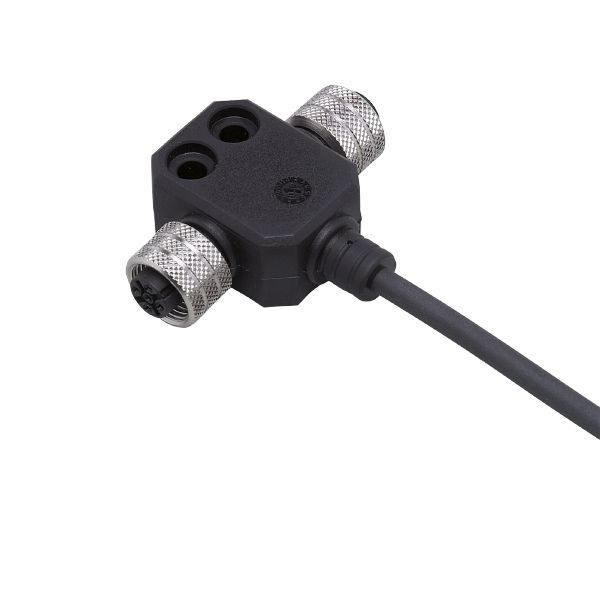

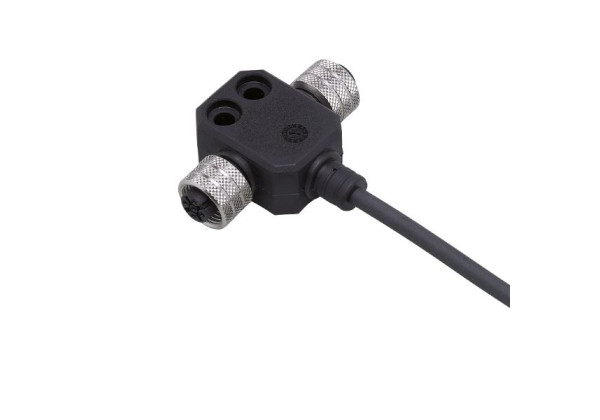

E10437 - ecomat400-ZDO2H040MSS0005H05
Brand: IFM Electronic
Code: E10437
- Connection technology meets the M12 standard (EN 61076)
- Permanent, reliable sealing even when mounted without tools
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | 10...55 DC |
|---|---|
| Max. current load per module/slot [A] | 4 |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 160.7 |
|---|---|
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 2 |
| Connector type | M12 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PUR, Halogen-free, black, Ø 5 mm; 4 x 0.25 mm² (32 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 2 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10437-01 — 22.07.2010 —
