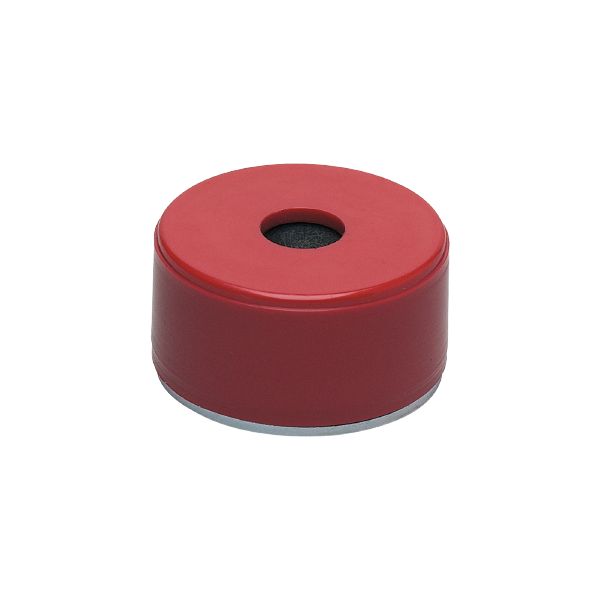

E10754 - efector100-MAGNET M5.1 BARIUMFER/PLAS
Brand: IFM Electronic
Code: E10754
- For ensuring a long sensing range
- For use in combination with magnetic sensors
- Hidden installation behind aluminium or stainless steel is possible
- Wide operating temperature range
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|
Mechanical data
| Weight [g] | 65.5 |
|---|---|
| Dimensions [mm] | Ø 35 / L = 18.7 |
| Materials | hard ferrite HF 26/22 mit Kunststoffmantel; steel |
| Magnetic field strength [mT] | 50 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10754-02 — 10.01.2020 —
