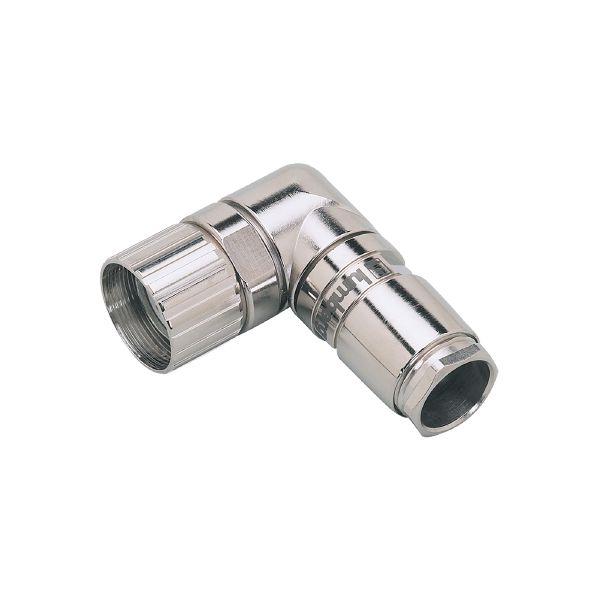

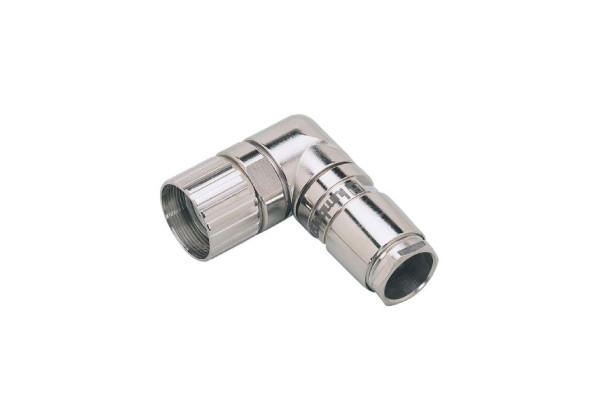

E10886 - ecomat400-SDOAK190MSSFKPG
Brand: IFM Electronic
Code: E10886
- For splitter boxes with M23 connector
- Gold-plated contacts for reliable electrical connections
- Angled type for use where space is restricted
- Wide operating temperature range
- Robust design for use in harsh industrial environments
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Max. current load total [A] | 7.5 |
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 148.5 |
|---|---|
| Dimensions [mm] | 51 x 26 x 58 |
| Materials | brass nickel-plated |
| Moulded-body material | brass, nickel-plated |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| soldering:...1 mm²; Cable sheath: Ø 10...14 mm |
Electrical connection - socket
| Connection | Connector: 1 x M23, angled; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10886-00 — 06.06.2011 —
