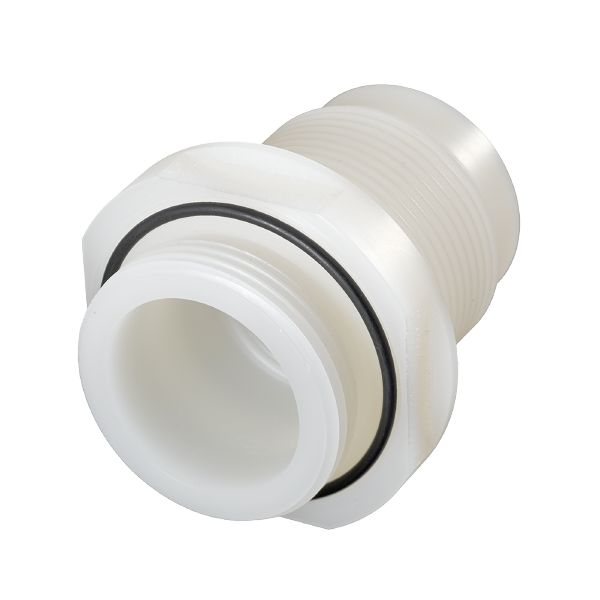

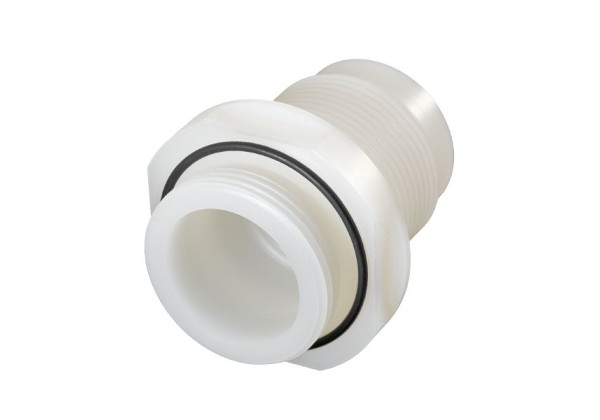

E11036 Mounting adapter for capacitive sensors MOUNTING ADAPTER M30 PVDF
Brand: IFM Electronic
Code: E11036
- Reliable installation in a vessel wall
- Efficient protection against soiling, impact and shock
- For level detection with capacitive sensors in containers and tanks
- High pressure rating
- Use in high medium temperatures
Application
| Pressure rating [bar] | 8 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...110 |
|---|
Mechanical data
| Weight [g] | 83.4 |
|---|---|
| Dimensions [mm] | G 1 1/4 / L = 65 |
| Thread designation | G 1 1/4 |
| Materials | Adapter: PVDF; Gasket: EPDM |
| Sensor connection | threaded connection M30 x 1,5 internal thread |
| Process connection | threaded connection G 1 1/4 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11036-00 — 07.01.2008 —
