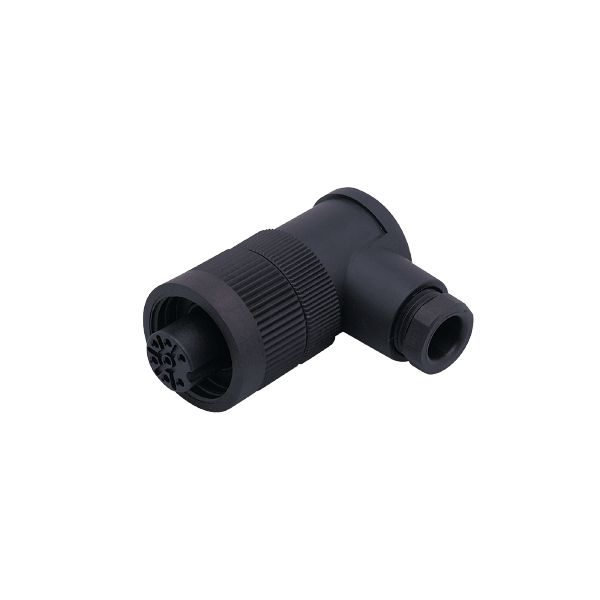

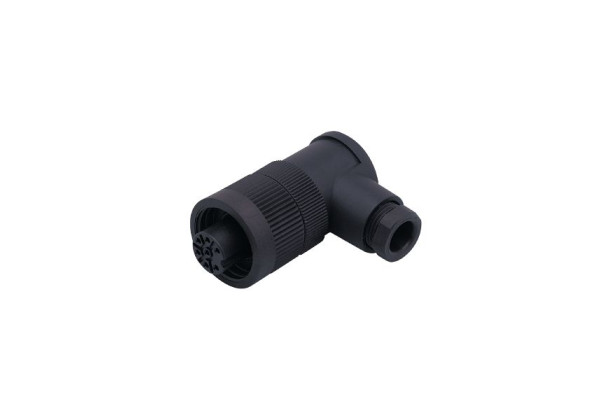

E11043 - ecomat400-SDOAL070PLSFKPG
Brand: IFM Electronic
Code: E11043
- Angled type for use where space is restricted
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Safe cable connection with screw terminals
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 250 AC / < 300 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...100 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 43.7 |
|---|---|
| Dimensions [mm] | 59 x 29 x 38.5 |
| Materials | PBT |
| Moulded-body material | PBT |
| Material nut | PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals:...2.5 mm²; Cable sheath: Ø 6...8 mm |
Electrical connection - socket
| Connection | Connector: 1 x Rd24, angled; coding: A; Moulded body: PBT; Locking: PA; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11043-00 — 09.11.2004 —
