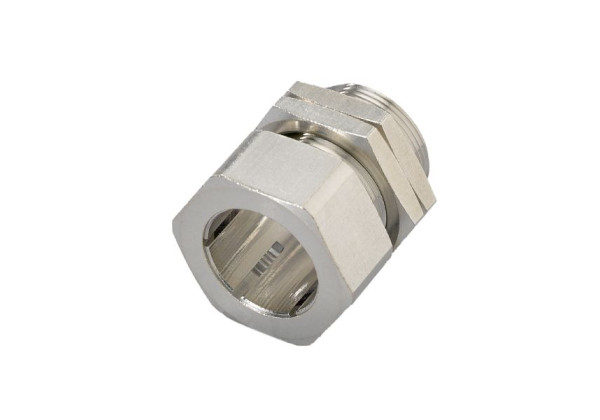

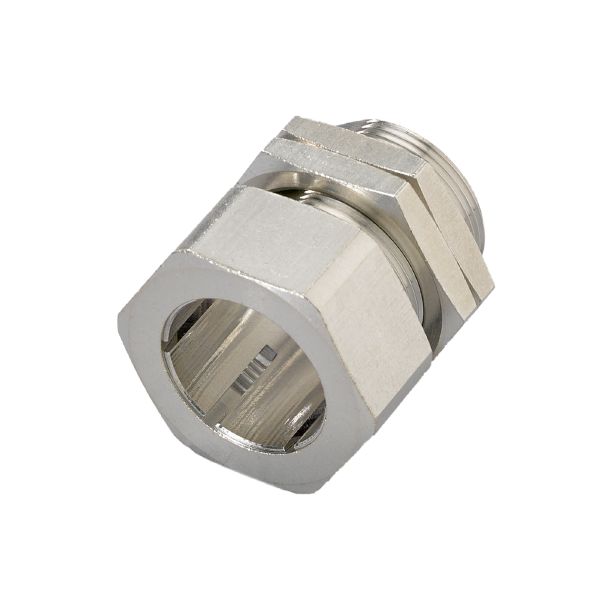

E11115 - efector100-Fixing/M18/modul/MS/end stop
Brand: IFM Electronic
Code: E11115
- End stop for defined installation position
- For mounting cylindrical sensors
- Easy and quick replacement without readjustment
- Reliable protection against damage
- Robust design for use in harsh industrial environments
Application
| Design | with end stop |
|---|
Mechanical data
| Weight [g] | 66.5 |
|---|---|
| Installation instruction | align the sensing face of the sensor to the right (see scale drawing) |
| Dimensions [mm] | M22 x 1 |
| Thread designation | M22 x 1 |
| Inside diameter [mm] | 18 |
| Materials | brass white bronze coated; Nuts: brass white bronze coated |
| Tightening torque [Nm] | 7; (lock nuts: 20) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11115-00 — 10.11.2020 —
