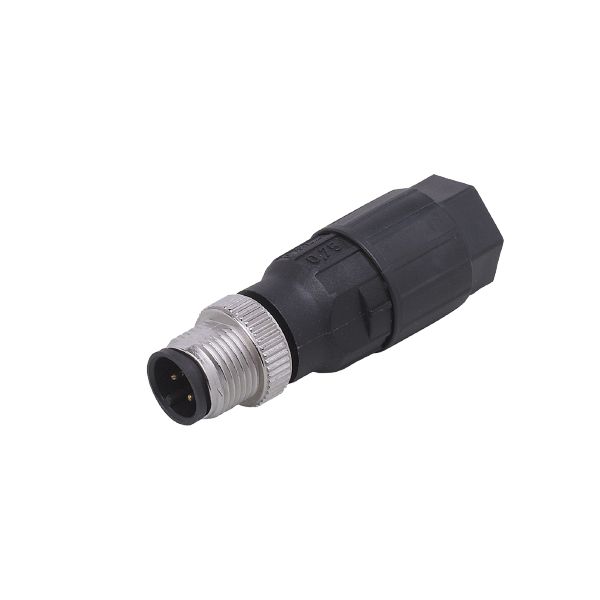

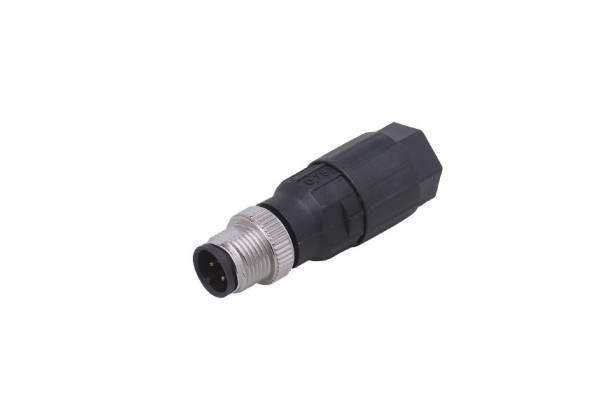

E11144 - ecomat400-SSTGH040MSSFKSK
Brand: IFM Electronic
Code: E11144
- For safe electrical connections
- High protection rating for the requirements of harsh industrial environments
- Easy cable connection via insulation displacement technology
Electrical data
| Operating voltage [V] | < 250 AC/DC |
|---|---|
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 15.4 |
|---|---|
| Dimensions [mm] | 18 x 18 x 55 |
| Materials | PA 6.6 |
| Moulded-body material | PA 6.6 |
| Material nut | zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| insulation displacement technology: 0.34...0.75 mm²; Core insulation: PVC / PE; (Ø...2.5 mm); Cable sheath: Ø 4...7.5 mm |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6; Locking: zinc, nickel-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11144-01 — 04.08.2010 —
