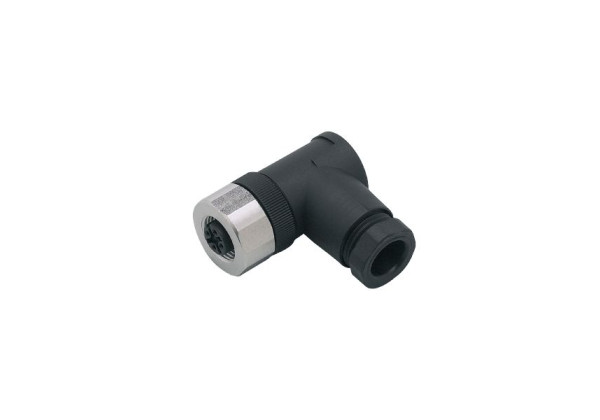

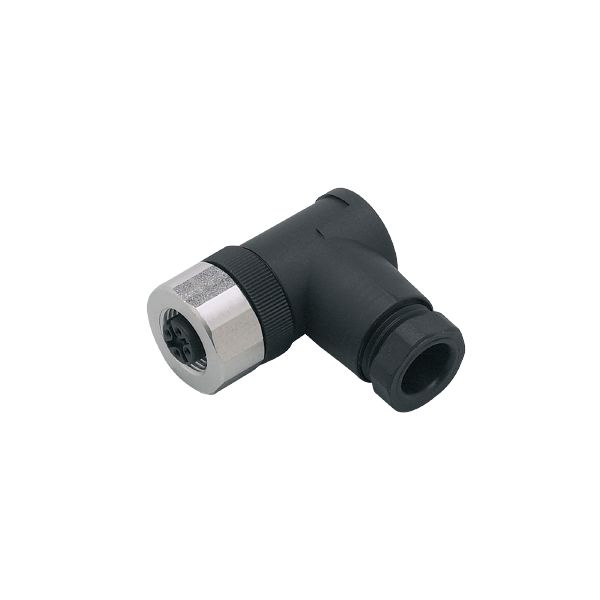

E11252 - ecomat400-SDOAH040VASFKPG
Brand: IFM Electronic
Code: E11252
- Angled type for use where space is restricted
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Safe cable connection with screw terminals
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 45 AC / < 70 DC |
|---|---|
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 28.2 |
|---|---|
| Dimensions [mm] | 39 x 19 x 31 |
| Materials | PBT |
| Moulded-body material | PBT |
| Material nut | stainless steel (1.4404 / 316L) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals:...0.75 mm²; Cable sheath: Ø 6...8 mm |
Electrical connection - socket
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: PBT; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11252-01 — 02.11.2017 —
